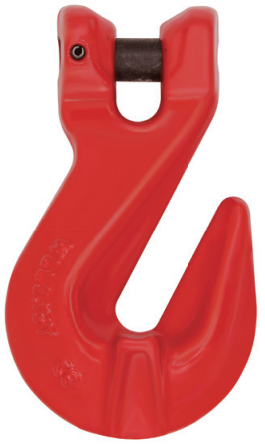

VNT086 G80 Clevis Shortening Cradle Grab Hook with Wings
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

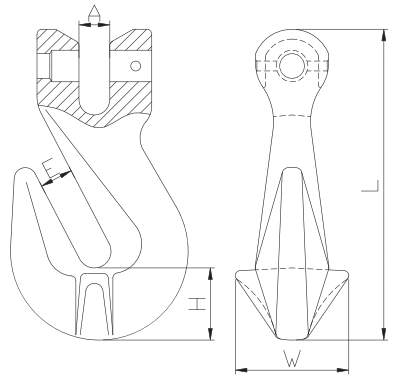

ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | E±1 | A±0.5 | H±1 | W±1 | L±2 |
VNT086-06 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
VNT086-7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
VNT086-10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
VNT086-13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
VNT086-16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
VNT086-20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
VNT086-22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
VNT086-26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |
