VNT078 G80 Special Clevis Self-locking Hook

banner
Product Details

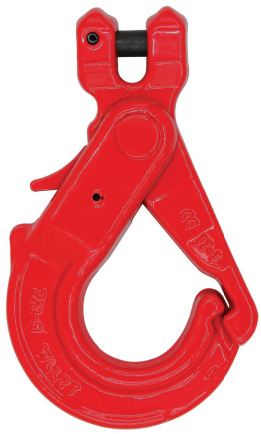

VNT078 G80 Special Clevis Self-locking Hook


Forged super alloy steel - Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Individually proof tested at 2.5 times Working Load Limit.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Breaking test.

100% Magnaflux Crack Detection.

Surface finish: Power plastified

Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

Other colour is available as per request.

Positive lock latch is self-locking when hook is loaded.

Ultimate load is 4 times the Working Load Limit.

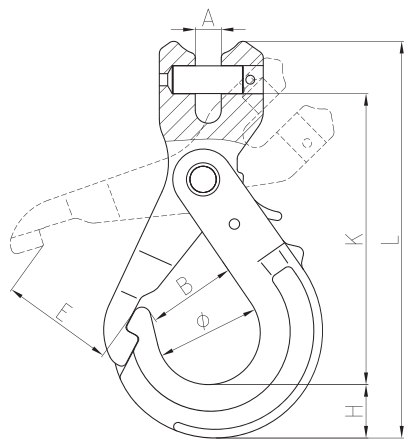

Item No.Weight/kgWLL/TBL/TA±1.5B±1.5E±2K±2H±11Φ±2
VNT078-7/80.68289.535341312215040
VNT078-101.253.1512.612.543421612618950
VNT078-132.155.321.2155050195.43122960
VNT078-163.883218.561702383829972
