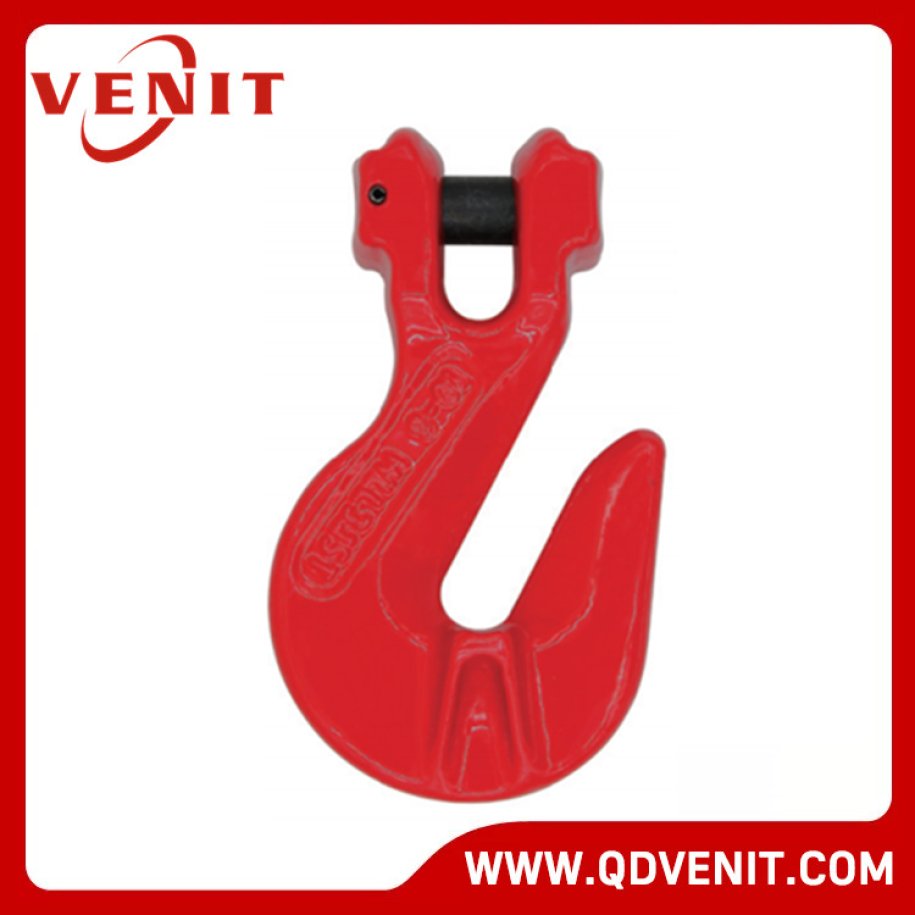

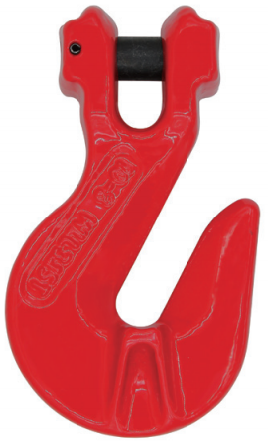

VNT064 G80 Clevis Shortening Grab Hook with Wings
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

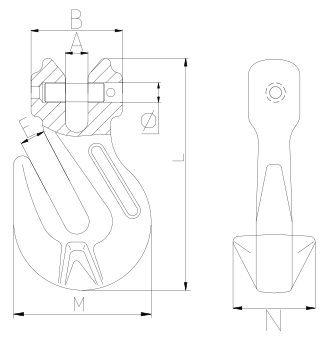

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±2 | B±2 | E±2 | M±3 | L±3 | Φ±3 | N±3 |
| VNT064-06 | 0.25 | 1.12 | 4.48 | 8 | 32 | 8 | 44 | 75 | 7.8 | 26.7 |
| VNT064-07 | 0.32 | 2 | 8 | 10 | 39 | 11 | 56 | 93 | 8.8 | 30 |
| VNT064-10 | 0.71 | 3.15 | 12.6 | 13 | 46 | 14 | 74 | 127 | 13 | 44.5 |
| VNT064-13 | 1.38 | 5.3 | 21.2 | 17 | 56 | 18 | 84 | 154 | 16.4 | 52.5 |
| VNT064-16 | 2.62 | 8 | 32 | 21.5 | 73.5 | 21 | 113 | 184 | 21.3 | 64 |
| VNT064-20 | 4.13 | 12.5 | 50 | 24 | 77 | 24 | 126.5 | 212 | 24.3 | 85 |
| VNT064-22 | 6.3 | 15 | 60 | 27 | 91 | 27 | 148 | 247 | 26.3 | 97.5 |
