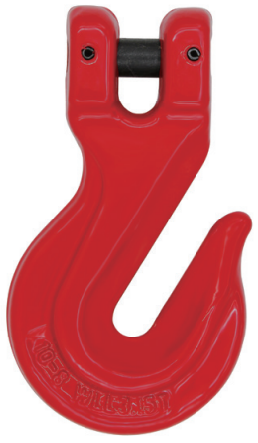

VNT028 G80 US Type Clevis Grab Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

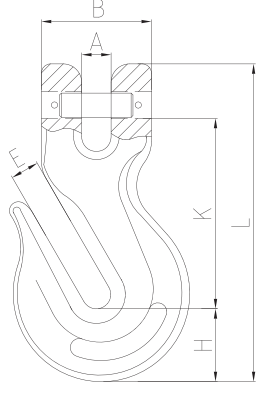

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±2 | E±2 | B±2 | H±3 | K±3 | L±3 |
| VNT028-1/4 | 0.22 | 1.2 | 4.8 | 8 | 8 | 34 | 19.5 | 57 | 90.5 |
| VNT028-9/32 | 0.31 | 2 | 8 | 9.5 | 9.5 | 41 | 23 | 65.3 | 106.5 |
| VNT028-3/8 | 0.7 | 3.2 | 12.8 | 12.7 | 12.5 | 46 | 31 | 82 | 137 |
| VNT028-1/2 | 1.8 | 5.4 | 21.6 | 16 | 16.7 | 61 | 43 | 113 | 184.5 |
| VNT028-5/8 | 3.1 | 8.2 | 32.8 | 19.5 | 20 | 68.5 | 49 | 129.5 | 215 |
| VNT028-3/4 | 4.1 | 12.8 | 51.2 | 24 | 24 | 88 | 58 | 152 | 254 |
| VNT028-7/8 | 6.2 | 15.5 | 62 | 27 | 26 | 101 | 64.8 | 178 | 295 |
