Brand: VENIT/OEM

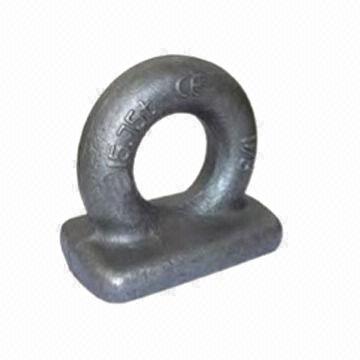

Our Eye Plate features a corrosion-resistant finish, protecting it from rust and other environmental factors.Fast logistics and delivery, contact us for a quote!

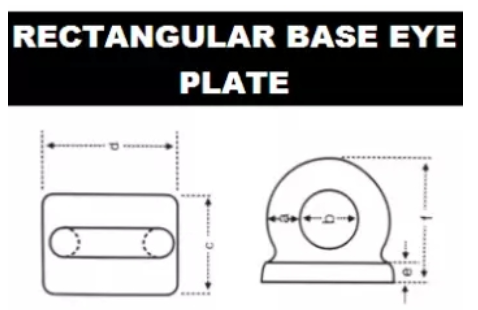

Rectangular Base Eye Plate
PROOF TEST | DIMENTIONS | ||||||
a | b | c | d | e | f | WEIGHT | |
TON | MM | MM | MM | MM | MM | MM | KG/PC |
2 | 10 | 20 | 25 | 45 | 6 | 38 | 0.14 |
3.5 | 13 | 25 | 35 | 60 | 8 | 50 | 0.31 |
5.5 | 16 | 32 | 45 | 70 | 10 | 64 | 0.45 |
7.5 | 19 | 38 | 50 | 85 | 12 | 76 | 0.79 |
9.56 | 22 | 45 | 60 | 102 | 13 | 89 | 1.36 |
13 | 25 | 50 | 70 | 115 | 16 | 100 | 1.82 |
15.75 | 28 | 57 | 76 | 130 | 18 | 114 | 2.95 |
20 | 32 | 64 | 85 | 145 | 19 | 128 | 3.86 |
23.63 | 35 | 70 | 95 | 159 | 21 | 140 | 5.11 |
29 | 38 | 76 | 100 | 170 | 22 | 152 | 6.58 |
39 | 44 | 88 | 120 | 200 | 26 | 178 | 9.99 |
50 | 50 | 100 | 140 | 230 | 30 | 203 | 14.98 |
