Brand: VENIT/OEM
The Oval Link of this BS4278-2 Eye Bolt provide superior load distribution and stability, reducing the risk of component failure and increasing overall system reliability.

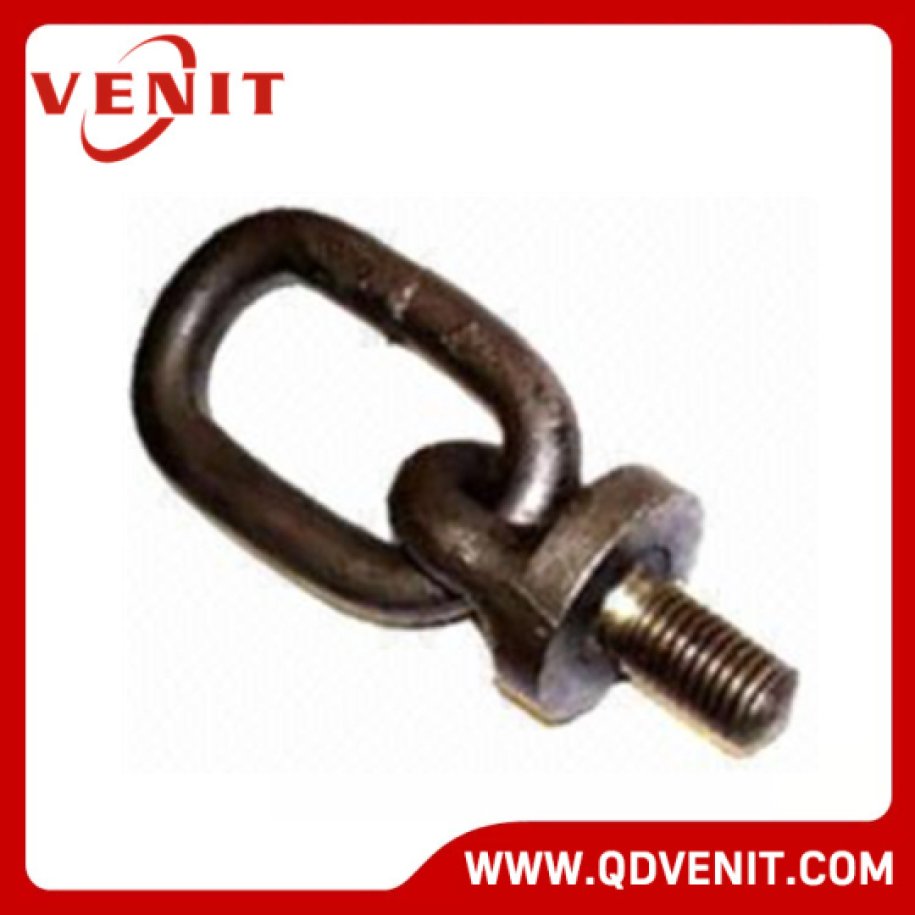

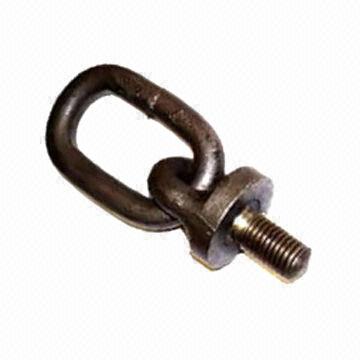

BS4278-2 Eye Bolt with Oval Link
Material: Carbon Steel
Heat Treated: Tempered and Quenched
Finish: Self Color or Electric Galvanized or Hot Dip Galvanized
SIZE | WEIGHT | WLL |
MM | KG/PC | TON |
MATERIC COARSE THREAD | ||
8 | 0.33 | 0.1 |
10 | 0.35 | 0.15 |
12 | 0.36 | 0.2 |
14 | 0.37 | 0.3 |
16 | 0.38 | 0.4 |
18 | 0.39 | 0.7 |
20 | 0.4 | 1 |
22 | 0.65 | 1.3 |
24 | 0.66 | 1.6 |
30 | 1.31 | 2.5 |
36 | 2.69 | 4 |
42 | 5.31 | 4.5 |
45 | 5.35 | 5 |
48 | 5.5 | 6.3 |
