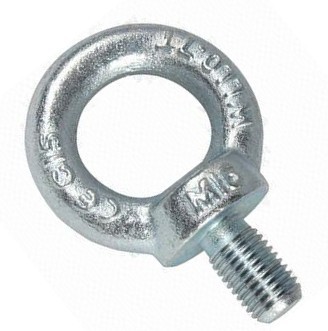

JIS1168 Eye Bolt
Brand: VENIT/OEM
Our Eye Bolt conforms to the JIS1168 standard, guaranteeing its quality, safety, and performance. This standard ensures that the product has been rigorously tested and verified for use in various applications.
Product Details
JIS1168 Eye Bolt

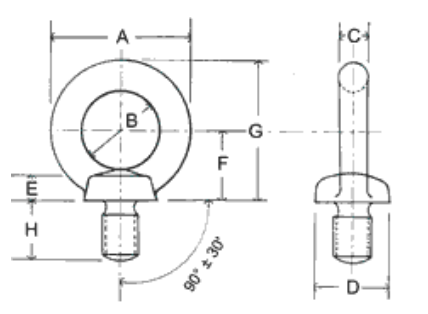

| Size | Dimension(INCH) | S.W.L. | Weight | ||||||
| MM | INCH | A | B | C | D | H | L | (TON) | (LBS) |
| M8 | 5/16∪ | 1.28 | 0.79 | 0.25 | 0.63 | 1.31 | 0.59 | 0.08 | 0.09 |
| M10 | 3/8∪ | 1.61 | 0.98 | 0.31 | 0.79 | 1.63 | 0.71 | 0.15 | 0.15 |
| M12 | 1/2∪ | 1.97 | 1.18 | 0.39 | 0.98 | 2.01 | 0.87 | 0.22 | 0.31 |
| M16 | 5/8∪ | 2.36 | 1.38 | 0.49 | 1.18 | 2.36 | 1.06 | 0.45 | 0.57 |
| M20 | 3/4∪ | 2.83 | 1.57 | 0.63 | 1.38 | 2.8 | 1.18 | 0.63 | 0.95 |
| M22 | 7/8∪ | 3.15 | 1.73 | 0.71 | 1.57 | 3.11 | 1.38 | 0.79 | 1.23 |
| M24 | 1∪ | 3.54 | 1.97 | 0.79 | 1.77 | 3.54 | 1.5 | 0.95 | 1.87 |
| M30 | 1-1/4∪ | 4.33 | 2.36 | 0.98 | 2.36 | 4.33 | 1.77 | 1.5 | 3.74 |
| M36 | 1-1/2∪ | 5.24 | 2.76 | 1.24 | 2.76 | 5.18 | 2.17 | 2.3 | 6.61 |
| M42 | 1-3/4∪ | 5.94 | 3.15 | 1.4 | 3.15 | 5.93 | 2.56 | 3.4 | 9.91 |
| M48 | 2∪ | 6.69 | 3.54 | 1.57 | 3.54 | 6.69 | 2.76 | 4.5 | 14.76 |
| M64 | – | 8.27 | 4.33 | 1.97 | 4.33 | 8.27 | 3.54 | 9 | 24.89 |
| M80 | – | 10.47 | 5.51 | 2.48 | 5.12 | 10.35 | 4.13 | 15 | – |
| M90 | – | 11.89 | 6.3 | 2.8 | 5.91 | 11.85 | 4.72 | 18 | – |
| M100 | – | 13.39 | 7.09 | 3.15 | 6.69 | 13.98 | 5.12 | 20 | – |
