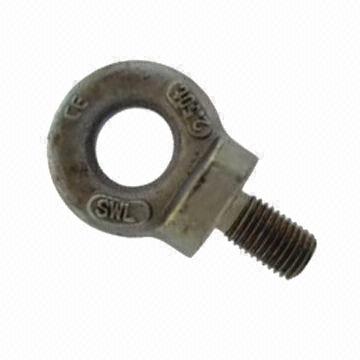

Collared Eye Bolt
Brand: VENIT/OEM
Our Collared Eye Bolt are made of durable, high-strength materials, and the design of the collar bolt has a strong construction to ensure that it can handle heavy loads.
Product Details
Collared Eye Bolt
| SIZE | SWL | Dimensions (MM) | |||||||||
| (MM) | TON | B | C | D | E | F | G | H | J | K | L |
| M12 | 0.4 | 22 | 15 | 7 | 15 | 9 | 20 | 18 | 1 | 3 | 9 |
| M16 | 0.8 | 29 | 20 | 10 | 20 | 12 | 26 | 23 | 1 | 3 | 12 |
| M18 | 1 | 36 | 24 | 12 | 24 | 14 | 32 | 28 | 1 | 4 | 14 |
| M20 | 1.6 | 40 | 27 | 14 | 27 | 16 | 36 | 32 | 1 | 5 | 16 |
| M22 | 1.6 | 45 | 30 | 15 | 30 | 18 | 40 | 35 | 1 | 5 | 18 |
| M24 | 2.5 | 52 | 35 | 17 | 35 | 21 | 46 | 40 | 2 | 6 | 21 |
| M27 | 2.5 | 58 | 39 | 20 | 39 | 23 | 52 | 46 | 2 | 7 | 23 |
| M30 | 4 | 65 | 44 | 22 | 44 | 26 | 58 | 51 | 2 | 7 | 26 |
| M33 | 4 | 72 | 48 | 24 | 48 | 29 | 64 | 56 | 3 | 8 | 29 |
| M36 | 6.3 | 81 | 54 | 27 | 54 | 32 | 72 | 63 | 3 | 9 | 32 |
| M39 | 6.3 | 90 | 60 | 30 | 60 | 36 | 80 | 70 | 3 | 10 | 36 |
| M45 | 8 | 101 | 68 | 34 | 68 | 40 | 90 | 79 | 3 | 11 | 40 |
| M52 | 12.5 | 115 | 76 | 38 | 76 | 46 | 102 | 89 | 3 | 13 | 46 |
| M56 | 16 | 128 | 86 | 43 | 86 | 51 | 114 | 100 | 4 | 14 | 51 |
| M64 | 20 | 144 | 96 | 48 | 96 | 58 | 128 | 112 | 4 | 16 | 58 |
| M70 | 20 | 162 | 108 | 54 | 108 | 65 | 144 | 126 | 4 | 18 | 65 |
| M76 | 25 | 180 | 120 | 60 | 120 | 72 | 160 | 140 | 4 | 20 | 72 |
