Brand: VENIT/OEM
Each BS4278 Collared Eye Bolt is precisely designed to meet strict standards. Make sure it fits your machinery and components perfectly,providing a secure and stable connection you can rely on.
BS4278 Collared Eye Bolt
Product Features:
BS970-080A27 Hardened and Tempered.
MBL Equals 5 x SWL.
B.S. 4278 – table 1 – 1984.
Self-Color, Electric Galvanized upon request.

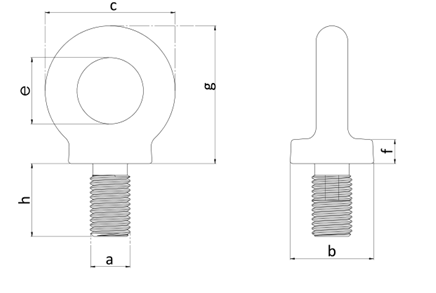

BS4278 COLLARED EYEBOLTS | ||||||||
SIZE | b | c | e | f | g | h | SWL | WEIGHT |
MM | MM | MM | MM | MM | MM | MM | TON | KG/PC |
6 | 22 | 33 | 15 | 7 | 36 | 18 | 0.1 | 0.06 |
8 | 22 | 33 | 15 | 7 | 36 | 18 | 0.15 | 0.06 |
10 | 22 | 33 | 15 | 7 | 36 | 18 | 0.25 | 0.06 |
12 | 22 | 33 | 15 | 7 | 36 | 18 | 0.4 | 0.06 |
14 | 29 | 44 | 20 | 10 | 48 | 23 | 0.5 | 0.15 |
16 | 29 | 44 | 20 | 10 | 48 | 23 | 0.8 | 0.15 |
18 | 36 | 52 | 24 | 12 | 58 | 28 | 1 | 0.27 |
20 | 40 | 59 | 27 | 14 | 65 | 32 | 1.6 | 0.38 |
22 | 45 | 64 | 30 | 14 | 73 | 35 | 1.6 | 0.54 |
24 | 52 | 77 | 35 | 17 | 84 | 40 | 2.5 | 0.85 |
27 | 58 | 85 | 39 | 20 | 94 | 46 | 2.5 | 1.13 |
30 | 65 | 96 | 44 | 22 | 106 | 51 | 4 | 1.62 |
33 | 72 | 106 | 48 | 24 | 117 | 56 | 4 | 2.37 |
36 | 81 | 118 | 54 | 27 | 131 | 63 | 6.3 | 3.12 |
39 | 86 | 123 | 57 | 29 | 137 | 67 | 6.3 | 3.81 |
42 | 101 | 148 | 68 | 34 | 164 | 79 | 8 | 6.27 |
45 | 101 | 148 | 68 | 34 | 164 | 79 | 8 | 6.45 |
48 | 101 | 148 | 68 | 34 | 164 | 79 | 10 | 6.51 |
52 | 115 | 168 | 76 | 38 | 186 | 89 | 12.5 | 9.58 |
56 | 128 | 188 | 86 | 43 | 208 | 100 | 16 | 12.99 |
64 | 144 | 212 | 96 | 48 | 234 | 112 | 20 | 18.2 |
