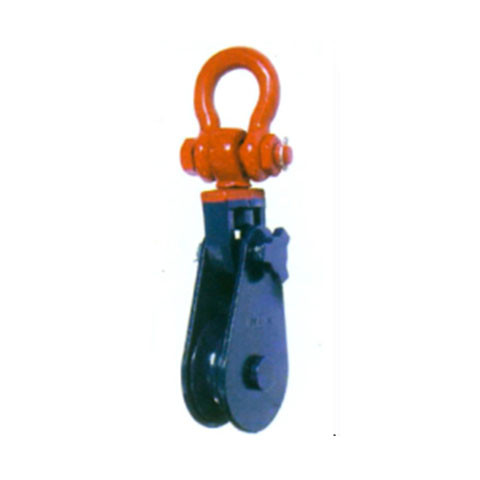

H419 Light Type Champion Snatch Block with Shackle
Product Features:
• Forged alloy heat treated.
• Forged steel swivel tees, yokes and shackles.
• Hook from H418 and shackle assemblies from H419 on 4-1/2” through 14” sizes can be interchanged.
• Can be furnished with bronze bushings or roller bearings.
• Opening feature permits insertion of rope while block is suspended from gin-pole.
• 3” thru 18” 419 blocks have exclusive bolt-retaining spring to assure no lost bolts.
• Pressure lube fittings.
• 3” - 10” feature dual rated Wireline sheaves.
• Fatigue rated.
• Ultimate Load is 4 times the Working Load Limit.
Part No. | Size | S.W.L | Dia. of Rope | N.W. |
(inch) | (ton) | (inch) | (kgs) | |
H4193000 | 3 | 2 | 3/8 | 2.24 |
H4194102 | 4 1/2 | 4 | 1/2 | 5.74 |
H4196000 | 6 | 8 | 3/4 | 12.5 |
H4198000 | 8 | 8 | 3/4 | 16.5 |
H419T100 | 10 | 8 | 3/4 | 22 |
H419T120 | 12 | 8 | 3/4 | 29.5 |
H419T140 | 14 | 8 | 3/4 | 35.6 |
H419T160 | 16 | 15 | 7/8 | 102 |
H419T180 | 18 | 15 | 1 | 118 |
