H409 Light Type Champion Snatch Block Double with Shackle

banner
Product Details

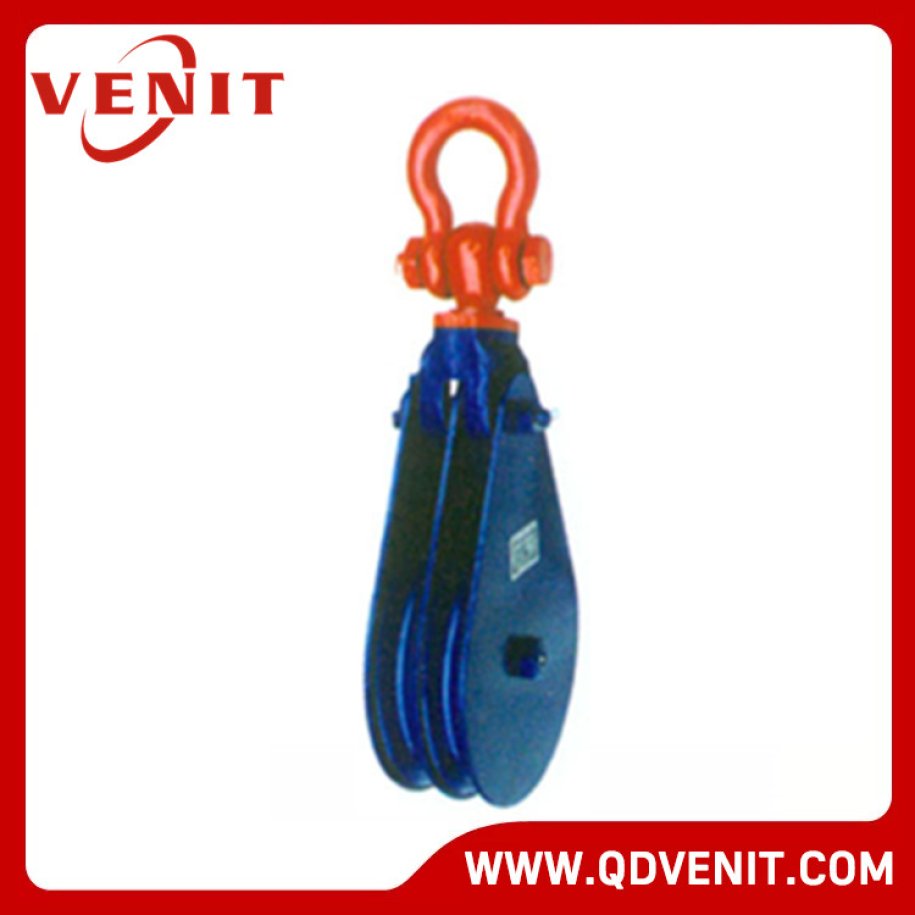

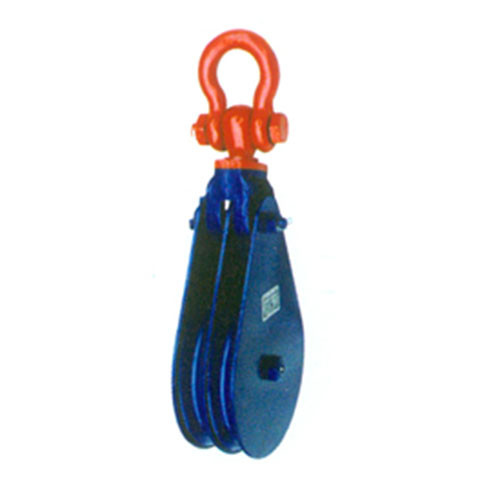

H409 Light Type Champion Snatch Block Double with Shackle


Product Features:
• Light champion snatch block as a double sheave block.
• Drop forged swivel hook or swivel shackle.
• Can be furnished with bronze bushings or roller bearings.
• Opening feature permits easy insertion of Wireline in both sheaves with removal of one bolt.
• 408 and 409 can be furnished with special hook latch.
• Pressure lube fittings.
• 4-1/2” - 10” models furnished with dual rated Wireline sheaves.
• Fatigue Rated.
• Ultimate Load is 4 times the Working Load Limit.


1

Part No.

Size

S.W.L

Dia. of Rope

N.W.

(inch)

(ton)

(inch)

(kgs)

H4094102

4 1/2

4

1/2

10

H4096000

6

12

3/4

12

H4098000

8

12

3/4

29.67

H409T100

10

12

3/4

60

H409T120

12

12

3/4

50.5

H409T140

14

12

3/4

56.25

H409T160

16

15

7/8

183.25

H409T180

18

15

1

220
