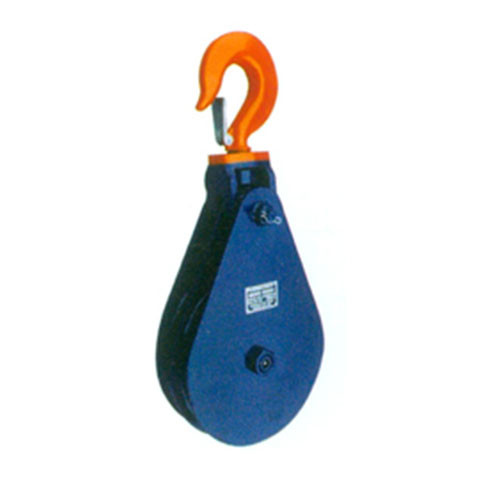

H408 Light Type Champion Snatch Block Double with Hook
Product Features:
• Light champion snatch block as a double sheave block.
• Drop forged swivel hook or swivel shackle.
• Can be furnished with bronze bushings or roller bearings.
• Opening feature permits easy insertion of Wireline in both sheaves with removal of one bolt.
• 408 and 409 can be furnished with special hook latch.
• Pressure lube fittings.
• 4-1/2” - 10” models furnished with dual rated Wireline sheaves.
• Fatigue Rated.
• Ultimate Load is 4 times the Working Load Limit.
Part No. | Size | S.W.L | Dia. of Rope | N.W. |
(inch) | (ton) | (inch) | (kgs) | |
H4084102 | 4 1/2 | 4 | 1/2 | 9.5 |
H4086000 | 6 | 12 | 3/4 | 23.83 |
H4088000 | 8 | 12 | 3/4 | 32.17 |
H408T100 | 10 | 12 | 3/4 | 59.25 |
H408T120 | 12 | 12 | 3/4 | 50 |
H408T140 | 14 | 12 | 3/4 | 55.75 |
H408T160 | 16 | 15 | 7/8 | 183.25 |
H408T180 | 18 | 15 | 1 | 230 |
