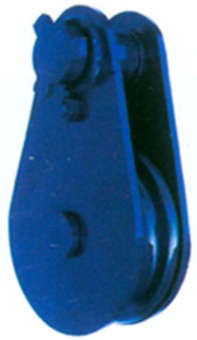

H404 Light Type Champion Snatch Block
Product Features:
• Can be furnished with bronze bushings or roller bearings.
• Opening feature permits insertion of rope while block is
suspended from gin-pole.
• Can be furnished with S-4320 hook latch.
• Pressure lube fittings.
• 3” - 10” feature dual rated Wireline sheaves.
• Fatigue rated.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature
requirements.
• Importantly, these blocks meet other critical performance requirements including fatigue life and material traceability.
Part No.
| Size | S.W.L | Dia. of Rope | N.W. |
(inch) | (ton) | (inch) | (kgs) | |
H4043000 | 3 | 2 | 3/8 | 1.4 |
H4044102 | 4 1/2 | 4 | 1/2 | 3.44 |
H4046000 | 6 | 8 | 3/4 | 6.94 |
H4048000 | 8 | 8 | 3/4 | 11 |
H404T100 | 10 | 8 | 3/4 | 16 |
H404T120 | 12 | 8 | 3/4 | 25 |
