Brand: VENIT/OEM
Introducing the Dynamo Eye Bolt, a versatile and reliable industrial fastener designed to meet the demands of various machinery and construction applications.
Dynamo Eye Bolt
DYNAMO Eye Bolts,Drop Forged,BS 4278 Table 3, Dynamo Eyebolts Coarse Metric Thread
Dynamo Eyebolts Metric Coarse Thread
Hardened and Tempered
MBL Equals 5 x SWL (tested 8 times)
Materil: Mild Steel or Customer Requirments.
Finished: Hot Drop Forged with Self-Color or E-Galv. or Hot Dip Galvanized or Upon Request.

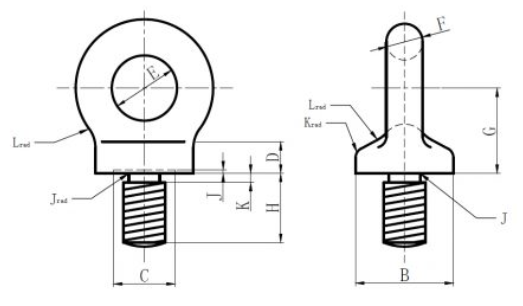

| Safe Working Load TON | Metric Thread Dia | B MM | C MM | D MM | E MM | F MM | G MM | H MM | J MM | K MM |
| 0.32 | 12 | 17 | 14 | 5 | 22 | 9 | 27 | 18 | 1 | 3 |
| 0.63 | 16 | 23 | 18 | 6 | 29 | 11 | 34 | 23 | 1 | 3 |
| 1.25 | 20 | 32 | 25 | 9 | 40 | 15 | 47 | 32 | 1 | 5 |
| 2 | 24 | 40 | 32 | 12 | 51 | 19 | 60 | 40 | 2 | 6 |
| 3.2 | 30 | 51 | 41 | 14 | 64 | 24 | 76 | 51 | 2 | 7 |
| 5 | 36 | 63 | 50 | 18 | 79 | 30 | 95 | 63 | 3 | 9 |
| 6.3 | 42 | 70 | 56 | 20 | 88 | 33 | 105 | 70 | 3 | 10 |
| 8 | 48 | 79 | 63 | 22 | 99 | 37 | 118 | 79 | 3 | 11 |
| 10 | 52 | 89 | 71 | 26 | 112 | 42 | 134 | 89 | 3 | 13 |
