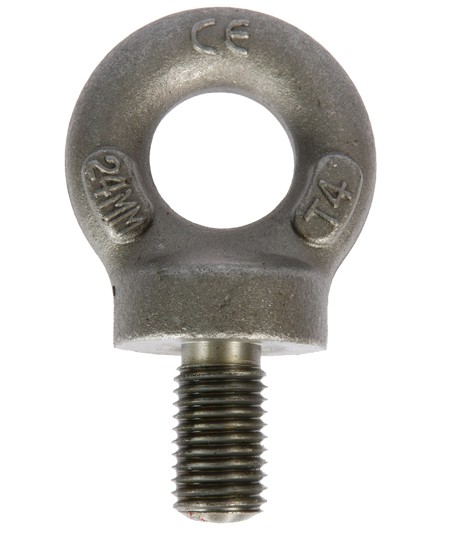

BS529 Collared Eye Bolt
Brand: VENIT/OEM
The BS529 Collared Eye Bolt provides a secure attachment point for ropes, chains, or other lifting devices, minimizing the risk of slippage or failure.
Product Details
BS529 Collared Eye Bolt
Product Features:
Made by carbon steel.
Electric Galvanized or Hot Dip Galvanized or Self-Colored.
Marked with working load limit.
Proof tested to 2 x Working load limit.

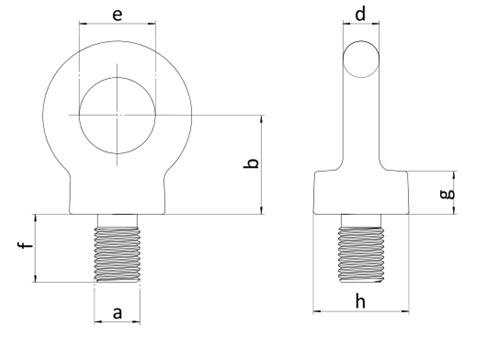

| BS529 COLLARED EYE BOLT | |||||||
| SIZE | b | d | e | f | g | h | SWL |
| INCH | MM | MM | MM | MM | MM | MM | TON |
| 3/8" | 21 | 7 | 14 | 9 | 19 | 17 | 0.25 |
| 1/2" | 28 | 10 | 19 | 11 | 25 | 22 | 0.5 |
| 5/8" | 36 | 12 | 24 | 14 | 32 | 28 | 0.9 |
| 3/4" | 43 | 14 | 28 | 17 | 38 | 33 | 1.4 |
| 7/8" | 50 | 17 | 33 | 20 | 44 | 39 | 2 |
| 1" | 57 | 19 | 38 | 22 | 51 | 44 | 2.75 |
| 1-1/8" | 64 | 21 | 42 | 25 | 57 | 50 | 3.5 |
| 1-1/4" | 71 | 24 | 48 | 28 | 64 | 55 | 4.5 |
| 1-1/2" | 85 | 28 | 57 | 33 | 76 | 67 | 6.5 |
| 1-3/4" | 101 | 33 | 67 | 39 | 89 | 77 | 9 |
| 2" | 115 | 38 | 76 | 44 | 102 | 89 | 12 |
| 2-1/4" | 128 | 42 | 85 | 50 | 115 | 101 | 15 |
| 2-1/2" | 143 | 48 | 95 | 55 | 127 | 111 | 20 |
| 3" | 172 | 57 | 115 | 67 | 152 | 133 | 30 |
