Get discounted high-quality VNT304 G80 Lifting Screw Points directly from China's top factory. Enjoy affordable pricing without compromising on quality and reliability.

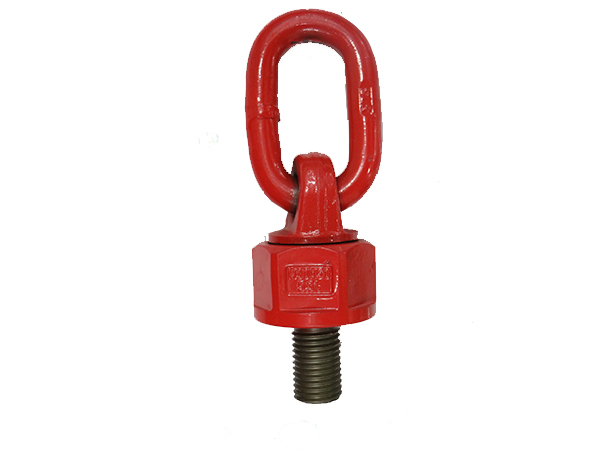

VNT304 G80 Lifting Screw Point
Forged super alloy steel - Quenched and Tempered.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003

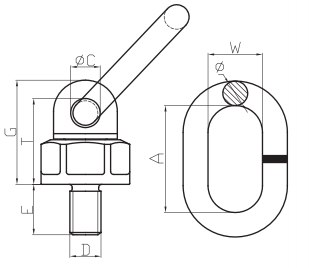

| Item No. | Weight/kg | WLL/T 90° | B.L/T 0° | D×E | C±2 | G±1 | T±2 | A±5 | W±5 | Φ±1.5 |
| VNT304-M8×13 | 0.54 | 0.3 | 0.6 | M8×13 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| VNT304-M10×18 | 0.54 | 0.45 | 0.9 | M10×18 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| VNT304-M12×20 | 0.55 | 0.5 | 1 | M12×20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| VNT304-M14×20 | 0.55 | 1.12 | 2 | M14×20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| VNT304-M16×25 | 0.57 | 1.12 | 2 | M16×25 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| VNT304-M20×33 | 1.11 | 2 | 4 | M20×33 | 19 | 68 | 56 | 70 | 35 | 16 |
| VNT304-M24×40 | 1.70 | 3.15 | 6.3 | M24×40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
| VNT304-M27×40 | 1.70 | 3.15 | 6.3 | M27×40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
| VNT304-M30×50(5T) | 2.55 | 5.3 | 10.6 | M30×50 | 23.5 | 97 | 81 | 85 | 40 | 20 |
| VNT304-M30×50(8T) | 3.9 | 8 | 11.8 | M30×50 | 28 | 113 | 93 | 115 | 50 | 22 |
| VNT304-M36×54 | 3.9 | 8 | 11.8 | M36×54 | 28 | 110 | 90 | 115 | 50 | 22 |
| VNT304-M39×54 | 4.00 | 8 | 11.8 | M39×54 | 28 | 110 | 90 | 115 | 50 | 22 |
| VNT304-M42×63 | 4.54 | 10 | 15 | M42×63 | 28 | 110 | 90 | 115 | 50 | 25 |
| VNT304-M48×68 | 4.82 | 10 | 15 | M48×68 | 28 | 110 | 90 | 115 | 50 | 25 |
| VNT304-M56×84 | 12.00 | 15 | 30 | M56×84 | 42 | 165 | 133 | 152 | 70 | 32 |
| VNT304-M64×95 | 12.75 | 15 | 30 | M64×95 | 42 | 165 | 133 | 152 | 70 | 32 |
