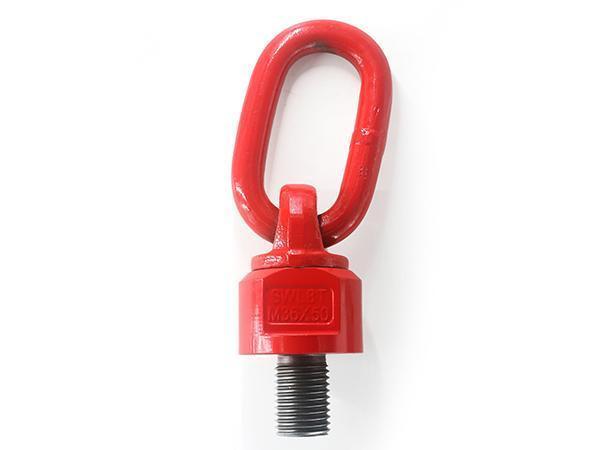

VNT303 G80 Lifting Screw Point
Features
● Forged super alloy steel- Quenched and Tempered.
● Individually proof test at 2.5 times Working Load Limit.
● Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
● Breakage test.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code: Red RAL3020/Yellow RAL1003.
● The angle between the direction of workforce and the screw is 0° and 90°.

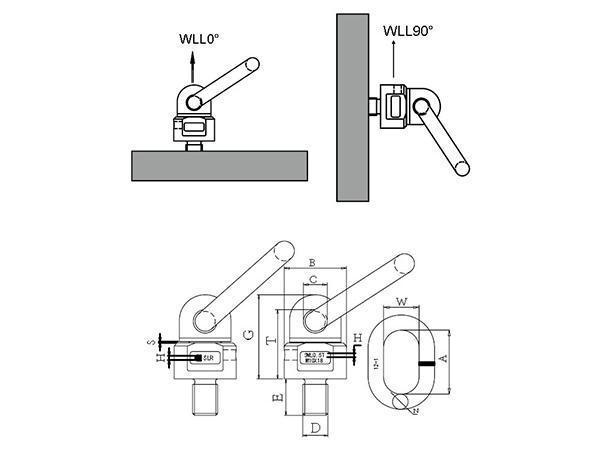

Item No. | Weight/kg | WLL/T 90° | WLL/T 0° | D×E | B±0.5 | C | G±1.5 | T±1.5 | A±5 | W±5 | Φ±2 | G±1 | S±0.8 |
VNT303-M8×13 | 0.45 | 0.3 | 0.6 | M8×13 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×18 | 0.45 | 0.3 | 0.6 | M8×18 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×20 | 0.45 | 0.3 | 0.6 | M8×20 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×23 | 0.45 | 0.3 | 0.6 | M8×23 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×30 | 0.45 | 0.3 | 0.6 | M8×30 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×32 | 0.45 | 0.3 | 0.6 | M8×32 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M8×43 | 0.46 | 0.3 | 0.6 | M8×43 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×10 | 0.45 | 0.5 | 1 | M10×10 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×15 | 0.45 | 0.5 | 1 | M10×15 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×18 | 0.45 | 0.5 | 1 | M10×18 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×20 | 0.45 | 0.5 | 1 | M10×20 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×25 | 0.45 | 0.5 | 1 | M10×25 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×27 | 0.46 | 0.5 | 1 | M10×27 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×30 | 0.46 | 0.5 | 1 | M10×30 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×40 | 0.46 | 0.5 | 1 | M10×40 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×50 | 0.47 | 0.5 | 1 | M10×50 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M10×90 | 0.5 | 0.5 | 1 | M10×90 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×18 | 0.46 | 0.5 | 1 | M12×18 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×20 | 0.46 | 0.5 | 1 | M12×20 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×27 | 0.46 | 0.5 | 1 | M12×27 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×30 | 0.47 | 0.5 | 1 | M12×30 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×31 | 0.47 | 0.5 | 1 | M12×31 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×35 | 0.47 | 0.5 | 1 | M12×35 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×40 | 0.47 | 0.5 | 1 | M12×40 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×45 | 0.48 | 0.5 | 1 | M12×45 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×48 | 0.48 | 0.5 | 1 | M12×48 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M12×110 | 0.54 | 0.5 | 1 | M12×110 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M14×20 | 0.49 | 1.12 | 2 | M14×20 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×20 | 0.47 | 1.12 | 2 | M16×20 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×24 | 0.48 | 1.12 | 2 | M16×24 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×27 | 0.49 | 1.12 | 2 | M16×27 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×30 | 0.49 | 1.12 | 2 | M16×30 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×35 | 0.49 | 1.12 | 2 | M16×35 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×40 | 0.50 | 1.12 | 2 | M16×40 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×46 | 0.51 | 1.12 | 2 | M16×46 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×50 | 0.52 | 1.12 | 2 | M16×50 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×64 | 0.54 | 1.12 | 2 | M16×64 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×80 | 0.57 | 1.12 | 2 | M16×80 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×100 | 0.60 | 1.12 | 2 | M16×100 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×120 | 0.63 | 1.12 | 2 | M16×120 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M16×300 | 0.91 | 1.12 | 2 | M16×300 | 36 | 16.5 | 52 | 42.8 | 55 | 30 | 14 | 30 | 1 |
VNT303-M18×30 | 0.95 | 2 | 4 | M18×30 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×20 | 0.97 | 2 | 4 | M20×20 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×30 | 0.99 | 2 | 4 | M20×30 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×35 | 1.01 | 2 | 4 | M20×35 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×40 | 1.02 | 2 | 4 | M20×40 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×43 | 1.02 | 2 | 4 | M20×43 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×50 | 1.04 | 2 | 4 | M20×50 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×55 | 1.05 | 2 | 4 | M20×55 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×75 | 1.10 | 2 | 4 | M20×75 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×80 | 1.12 | 2 | 4 | M20×80 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M20×120 | 1.21 | 2 | 4 | M20×120 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 1 |
VNT303-M24×30 | 1.33 | 3.15 | 6.3 | M24×30 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×36 | 1.35 | 3.15 | 6.3 | M24×36 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×38 | 1.36 | 3.15 | 6.3 | M24×38 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×40 | 1.36 | 3.15 | 6.3 | M24×40 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×45 | 1.38 | 3.15 | 6.3 | M24×45 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×50 | 1.4 | 3.15 | 6.3 | M24×50 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×73 | 1.48 | 3.15 | 6.3 | M24×73 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×90 | 1.54 | 3.15 | 6.3 | M24×90 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×96 | 1.56 | 3.15 | 6.3 | M24×96 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×120 | 1.65 | 3.15 | 6.3 | M24×120 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M24×300 | 2.29 | 3.15 | 6.3 | M24×300 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M27×35 | 1.47 | 3.15 | 6.3 | M27×35 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.5 |
VNT303-M30×35(5T) | 2.3 | 5.3 | 10.6 | M30×35 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×38(5T) | 2.32 | 5.3 | 10.6 | M30×38 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×45(5T) | 2.36 | 5.3 | 10.6 | M30×45 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×60(5T) | 2.49 | 5.3 | 10.6 | M30×60 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×75(5T) | 2.53 | 5.3 | 10.6 | M30×75 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×120(5T) | 2.78 | 5.3 | 10.6 | M30×120 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×160(5T) | 3 | 5.3 | 10.6 | M30×160 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 1.5 |
VNT303-M30×35(8T) | 3.73 | 8 | 11.8 | M30×35 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×38(8T) | 3.75 | 8 | 11.8 | M30×38 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×45(8T) | 3.79 | 8 | 11.8 | M30×45 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×50(8T) | 3.82 | 8 | 11.8 | M30×50 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×55(8T) | 3.84 | 8 | 11.8 | M30×55 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×98(8T) | 4.08 | 8 | 11.8 | M30×98 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×120(8T) | 4.21 | 8 | 11.8 | M30×120 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M30×140(8T) | 4.32 | 8 | 11.8 | M30×140 | 80 | 28 | 114 | 94 | 115 | 50 | 22 | 64 | 2 |
VNT303-M36×50 | 3.88 | 8 | 11.8 | M36×50 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×53 | 3.9 | 8 | 11.8 | M36×53 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×60 | 3.96 | 8 | 11.8 | M36×60 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×90 | 4.2 | 8 | 11.8 | M36×90 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×128 | 4.5 | 8 | 11.8 | M36×128 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×140 | 4.6 | 8 | 11.8 | M36×140 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×160 | 4.76 | 8 | 11.8 | M36×160 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×220 | 5.24 | 8 | 11.8 | M36×220 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×300 | 5.88 | 8 | 11.8 | M36×300 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×330 | 6.12 | 8 | 11.8 | M36×330 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M36×400 | 6.67 | 8 | 11.8 | M36×400 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M39×50 | 3.95 | 8 | 11.8 | M39×50 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M39×60 | 4.04 | 8 | 11.8 | M39×60 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M39×90 | 4.32 | 8 | 11.8 | M39×90 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2 |
VNT303-M42×50 | 4.46 | 10 | 15 | M42×50 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M42×60 | 4.57 | 10 | 15 | M42×60 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M42×63 | 4.6 | 10 | 15 | M42×63 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M42×130 | 5.33 | 10 | 15 | M42×130 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M42×160 | 5.66 | 10 | 15 | M42×160 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M42×180 | 5.87 | 10 | 15 | M42×180 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M45×60 | 4.7 | 10 | 15 | M45×60 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×50 | 4.63 | 10 | 15 | M48×50 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×60 | 4.77 | 10 | 15 | M48×60 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×70 | 4.91 | 10 | 15 | M48×70 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×72 | 4.94 | 10 | 15 | M48×72 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×110 | 5.48 | 10 | 15 | M48×110 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×160 | 6.19 | 10 | 15 | M48×160 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M48×245 | 7.39 | 10 | 15 | M48×245 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 2.5 |
VNT303-M56×84 | 11.8 | 15 | 25 | M56×84 | 117 | 42 | 166 | 134 | 152 | 70 | 32 | 95 | 2.5 |
VNT303-M64×95 | 12.5 | 15 | 25 | M64×95 | 117 | 42 | 166 | 134 | 152 | 70 | 32 | 95 | 2.5 |
