Discover the latest in lifting technology with our advanced VNT292 G80 Lifting Eye Screw featuring an Omega Link, now available in China. Ensure safe and reliable lifting operations with our precision-engineered product.

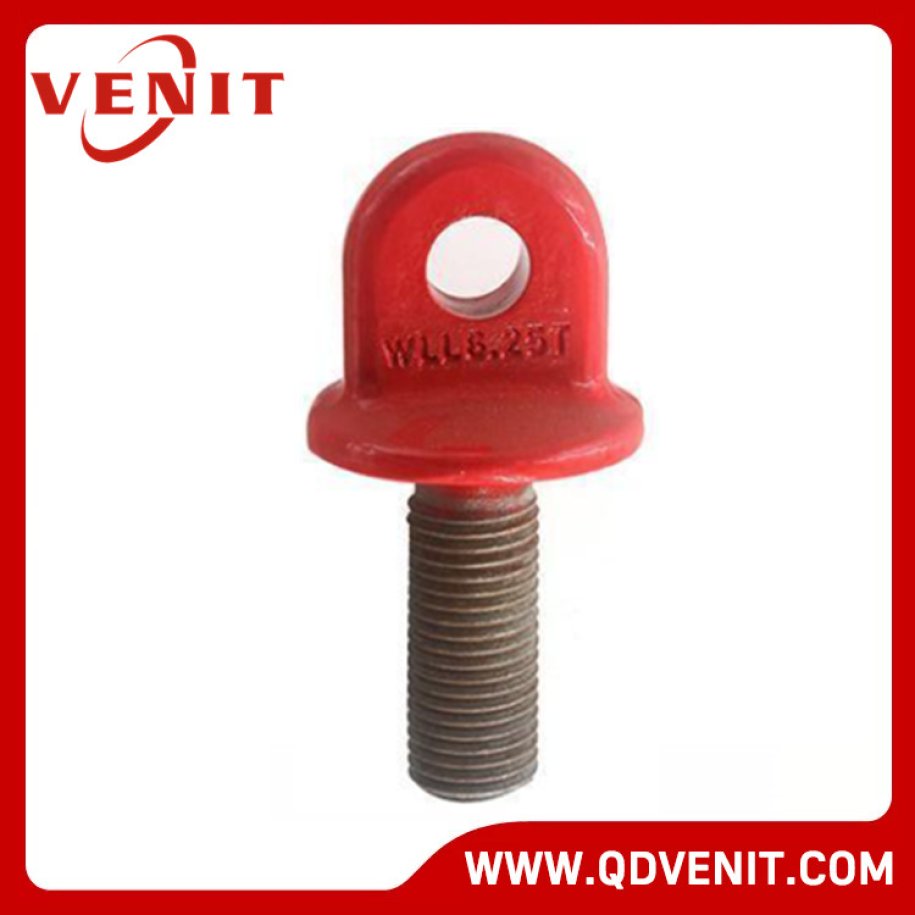

VNT292 G80 Lifting Eye Screw with Omega Link
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
Ultimate load is 4 times the Working Load Limit.

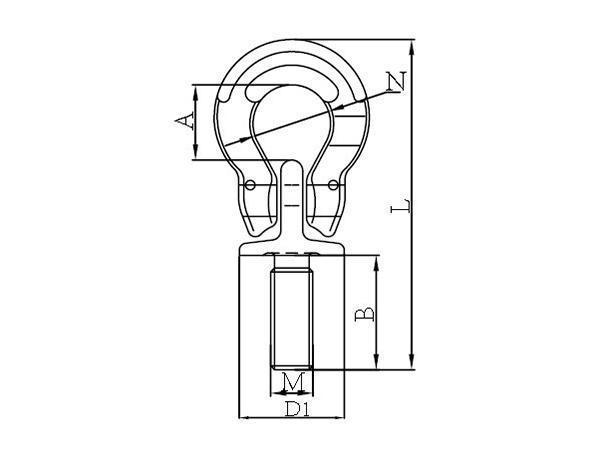

Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±1 | N | M | D | L±2 |
VNT292-M12 | 0.23 | 1.25 | 5 | 24.8 | 35 | 23.6 | 12 | 34 | 112 |
VNT292-M14 | 0.24 | 1.5 | 6 | 24.8 | 35 | 23.6 | 14 | 34 | 112 |
VNT292-M16 | 0.31 | 1.87 | 7.48 | 24.8 | 35 | 23.6 | 16 | 34 | 112 |
VNT292-M18 | 0.5 | 2.5 | 10 | 30.4 | 44 | 31.5 | 18 | 40 | 130 |
VNT292-M20 | 0.5 | 3.12 | 12.48 | 30.4 | 43 | 31.5 | 20 | 40 | 129 |
VNT292-M24 | 2.11 | 3.15 | 12.6 | 48 | 130 | 49.5 | 24 | 67 | 268 |
VNT292-M27 | 2.00 | 6.25 | 25 | 48 | 73 | 49.5 | 27 | 67 | 211 |
VNT292-M30 | 2.11 | 7.5 | 30 | 48 | 73 | 49.5 | 30 | 67 | 211 |
