Product Details

VNT173 G80 Pivoting Lifting Screw


Features

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;

● It can be matched with sling and G80 chains which can meet the standard EN818-2;

● Each workpiece should pass testing at 2.5 times of working load limit;

● We should carry out sampling and 20000 times of fatigue testing;

● We should carry out strict sampling and breakage testing for each batch of products;

● We should carry out 100% magnetic powder flaw detection;

● 100% of the pin should be tested to ensure that they have the same hardness;

● Surface treatment: plastics spraying.

● Color code: red RAL3020/yellow RAL1003.

Ultimate load is 4 times the Working Load Limit.

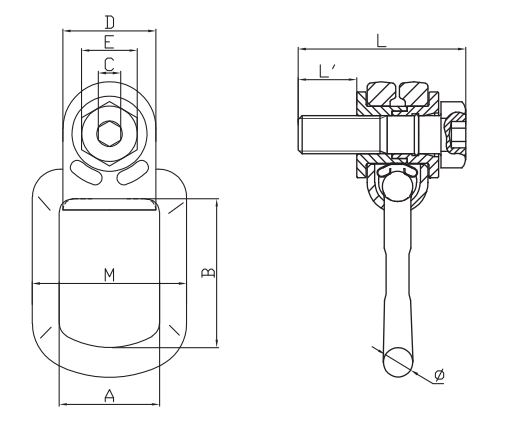

ITEM NO.WEIGHT/kgWLL/TB.L/TA±1B±1CDEM±1.5L±1.5L’ ±1.5Φ±0.5
VNT173-M80.360.31.23552.563013454610.414
VNT173-M8×760.390.31.23552.56301345467614
VNT173-M100.380.632.523552.56301745521614
VNT173-M10×960.430.632.523552.56301745529614
VNT173-M120.711440548361968621818
VNT173-M12×1140.8144054836196815811418
VNT173-M140.721.24.840548361968662118
VNT173-M14×1400.861.24.840541036226818514018
VNT173-M160.741.5640548361968702418
VNT173-M16×300.741.5640548361968703018
VNT173-M16×400.751.5640548361968704018
VNT173-M16×1000.851.5640541036246814610018
VNT173-M16×1490.921.5640541036246819514918
VNT173-M16×1940.991.5640541036246824019418
VNT173-M18×261.1628548012503083832616
VNT173-M18×1801.472854801250308323718016
VNT173-M201.192.510548012503083883016
VNT173-M20×551.212.5105480125030831135516
VNT173-M20×601.252.5105480125030831186016
VNT173-M20×1001.572.51054801250308315610016
VNT173-M20×1872.272.51054801250308311818716
VNT173-M24×351.35416549414503683953518
VNT173-M24×401.384165494145036831004018
VNT173-M24×601.464165494145036831206018
VNT173-M24×801.544165494145036831388018
VNT173-M24×1001.6241654941450368315810018
VNT173-M24×2222.1141654941450368312022218
VNT173-M274.18416731061768411201203827
VNT173-M27×2705.224167310617684112035227027
VNT173-M304.4520731061768411201324827
VNT173-M30×704.19520731061768411201547027
VNT173-M30×2795.355207310617684112015427927
VNT173-M36×544.65728731061768411201425427
VNT173-M36×627.683294140.52286551561636231
VNT173-M36×704.8728731061768411201587027
VNT173-M36×2238.9483294140.522865515632422331
VNT173-M428.2104094140.52486651561767231
VNT173-M42×6312.415601041552495651761796340
VNT173-M42×26314.6156010415524956517637926340
VNT173-M48×741320801041552495751761947440
VNT173-M48×29516.1208010415524957517619429540
