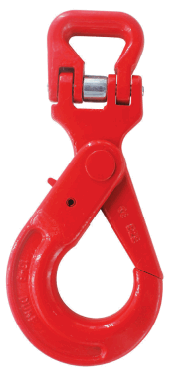

VNT110 G80 Self-locking Hook for Web Sling With Half Link
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Ultimate load is 4 times the Working Load Limit.
Position lock latch is SELF-LOCKING when hook is loaded

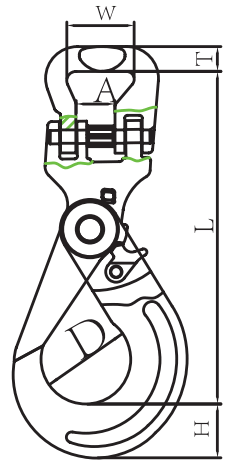

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±1.5 | H±1 | W±1.5 | T±1 | D±1.5 | L±3 |
| VNT110-10 | 1.8 | 3.15 | 12.6 | 26.8 | 28.5 | 47 | 16 | 58 | 199 |
| VNT110-13 | 3.52 | 5.3 | 21.2 | 30 | 40 | 51.5 | 19 | 70 | 256 |
