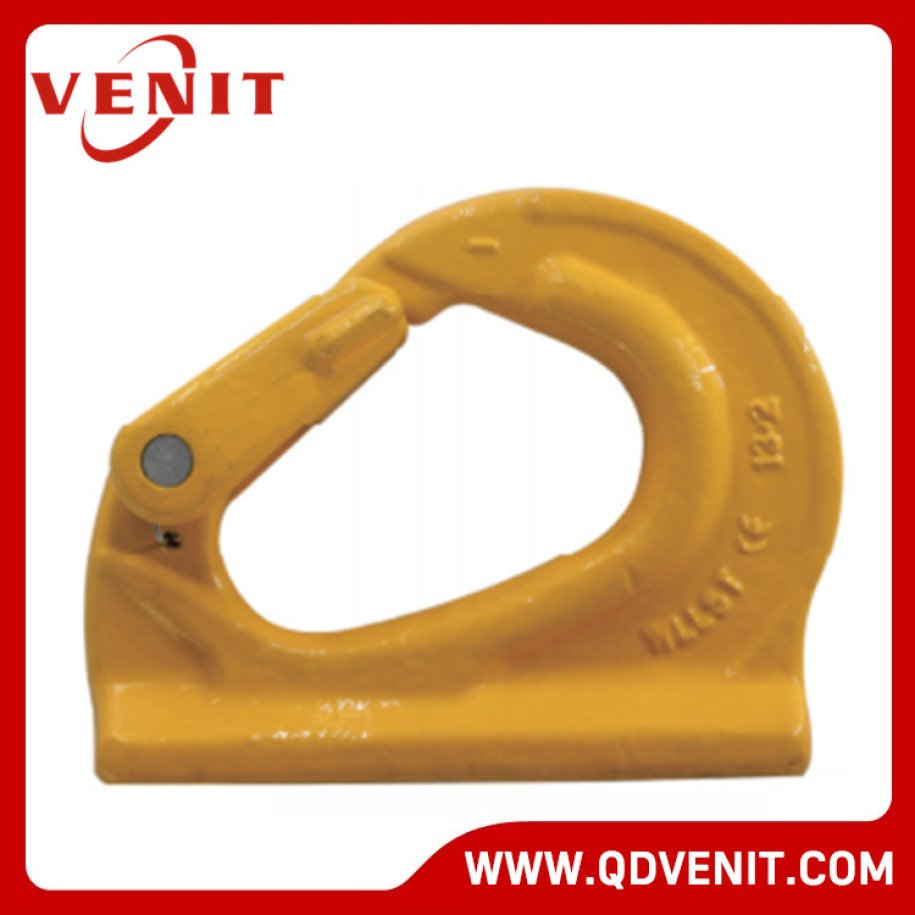

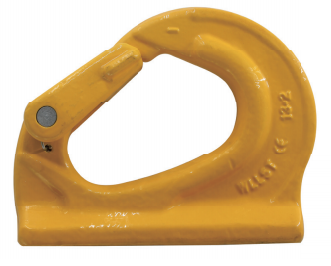

VNT019 G80 Weld On Hook with Forged Latch
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
● It is equipped with high intensity cast latch.
● Ultimate load is 5 times the Working Load Limit.

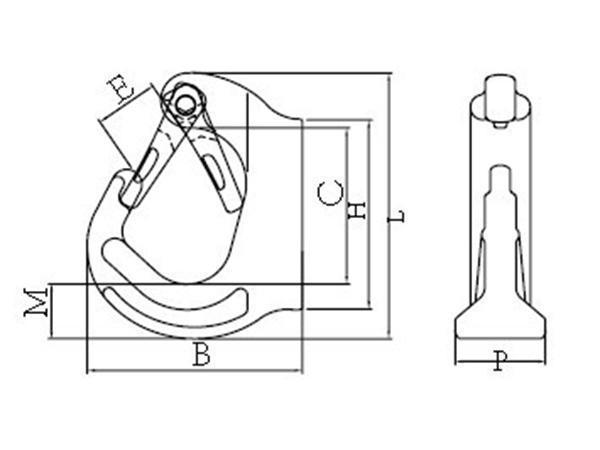

| Item No. | Weight/kg | WLL/T | B.L/T | B±1.5 | C±1.2 | E±0.5 | H±2 | M±1 | P±1 | L±2 |
| VNT019-1.0T | 0.49 | 1 | 5 | 77.6 | 61.3 | 25 | 93 | 23 | 25 | 101.6 |
| VNT019-2.0T | 0.87 | 2 | 10 | 92 | 67 | 28 | 81 | 23.4 | 34 | 114 |
| VNT019-3.0T | 1.13 | 3 | 15 | 106 | 73.5 | 30 | 116 | 30.5 | 36 | 129 |
| VNT019-5.0T | 2.5 | 5 | 25 | 133 | 94 | 39 | 159 | 44 | 43.5 | 171 |
| VNT019-8.0T | 3.26 | 8 | 40 | 137 | 94 | 36 | 159 | 44 | 51 | 177 |
| VNT019-10.0T | 5.2 | 10 | 50 | 170 | 135 | 48 | 194 | 54.7 | 53 | 223 |
