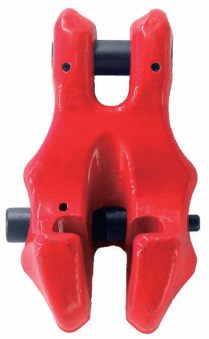

VNT638 G80 Clevis Chain Clutch with Safety Pin
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.

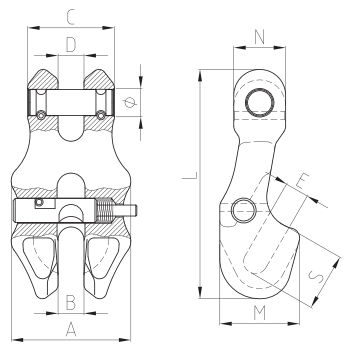

| Item No. | Weight/kg | WLL/T | B.L/T | A±2 | B±0.5 | C±1 | D±0.5 | E±0.3 | Φ±0.3 | L±3 | M±0.5 | N±0.5 | S±0.3 |
| VNT638-06 | 0.25 | 1.12 | 4.48 | 38 | 7.5 | 27 | 7.5 | 7.5 | 7.7 | 73 | 27 | 16 | 20.9 |
| VNT638-08 | 0.41 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 9.2 | 9.2 | 92 | 33 | 23 | 22.6 |
| VNT638-10 | 0.82 | 3.15 | 12.6 | 60 | 11.5 | 43 | 11.5 | 12 | 13.3 | 115 | 42.2 | 26 | 31 |
| VNT638-13 | 1.67 | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 15.5 | 16.3 | 149 | 54 | 34 | 38.4 |
| VNT638-16 | 3.85 | 8 | 32 | 98 | 19 | 70 | 19 | 18.5 | 19.7 | 184 | 70 | 40 | 49.8 |
