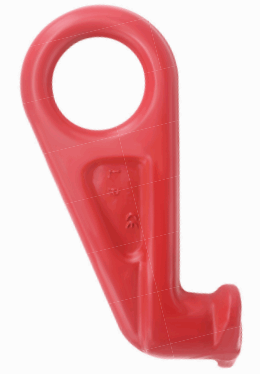

VNT633 G80 Container Lifting Hook
Forged super alloy steel - Quenched and tempered.
Suitable for Container.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection
All load pin are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

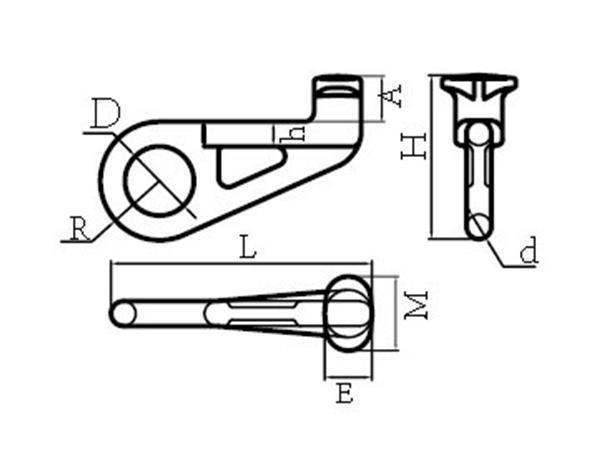

ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | M±1 | H±2 | h±1 | E±2 | R±1 | D±1 | d±1 | L±2 |
VNT633-S | 4.125 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |
Ultimate load is 4 times the Working Load Limit.

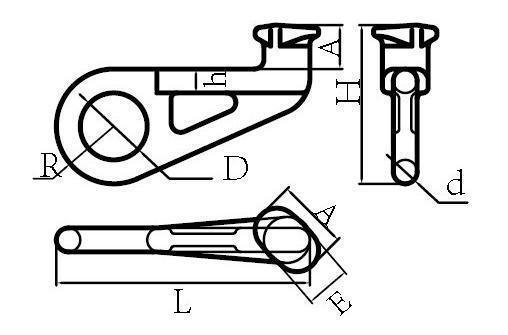

ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | M±1 | H±2 | h±1 | E±2 | R±1 | D±1 | d±1 | L±2 |
VNT633-L | 4.125 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |
Ultimate load is 4 times the Working Load Limit.

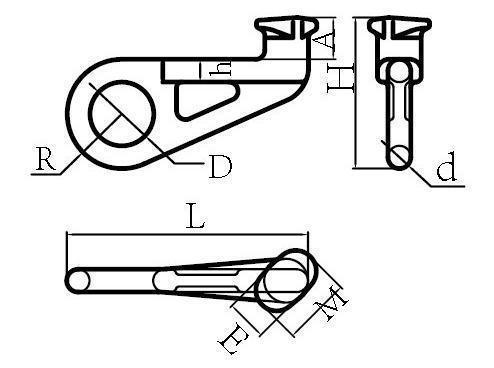

ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | M±1 | H±2 | h±1 | E±2 | R±1 | D±1 | d±1 | L±2 |
VNT633-R | 4.125 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |
Ultimate load is 4 times the Working Load Limit.
