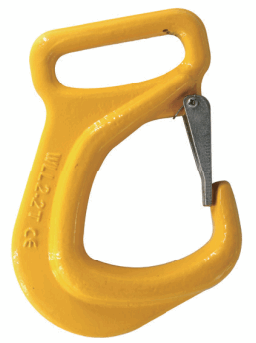

VNT090 G80 Eye Hook for Webbing Sling
Forged super alloy steel - Quenched and tempered.
Suitable for web sling and G80 chain EN818-2.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection
All load pin are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

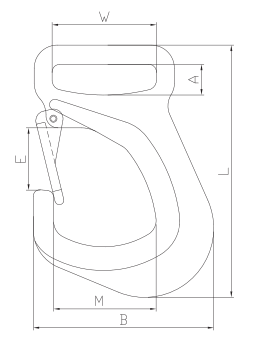

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±1 | W±1.5 | M±2 | B±2 | E±1 | L±2 |
| VNT090-75mm | 2.1 | 2.75 | 11 | 23 | 81.5 | 80 | 141 | 45 | 194 |
