Brand: VENIT/OEM
Our G70 A-336 US Type Forged Alloy Steel Connecting Link is a high-quality industrial component designed for use in a variety of Rigging, Lifting, and Towing applications.

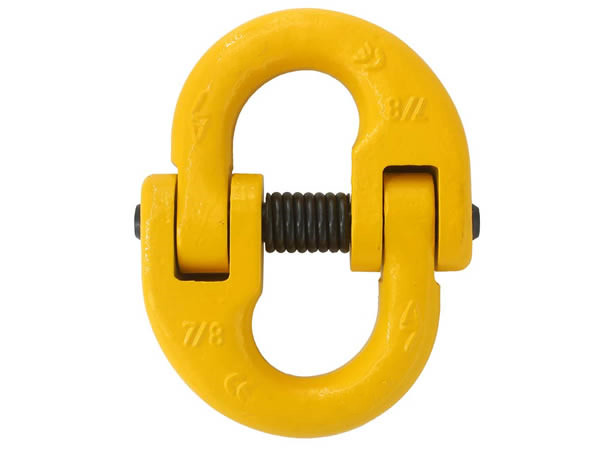

VNT075 G70 A-336 US Type Forged Alloy Steel Connecting Link
Features
● It is a G70 product which can only used for lashing and pulling but not lifting!
● It is forged by alloy steel. And the strict heat treatment ensures the intensity and toughness.
● It can be matched with G70 chains.
Ultimate load is 4 times the Working load limit

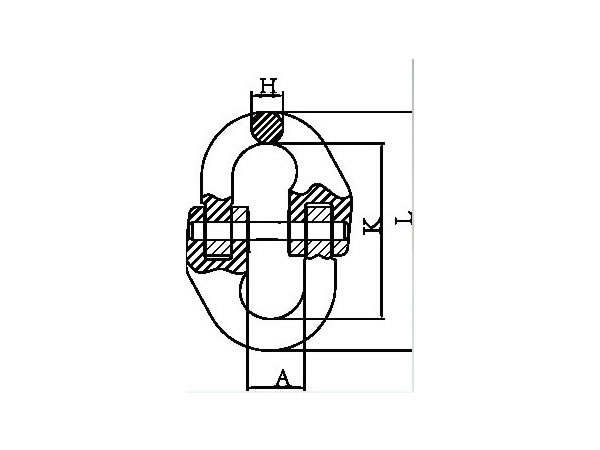

| ITEM NO. | WEIGHT/lbs | WLL/lbs | B.L/lbs | A±1.5 | L±2 | K±2 | H±1 |
| VNT075-1/4 | 0.24 | 3250 | 13000 | 19.8 | 69 | 55 | 7.8 |
| VNT075-5/16 | 0.32 | 4500 | 18000 | 18 | 79.5 | 62.5 | 8.5 |
| VNT075-3/8 | 0.58 | 6600 | 26400 | 27 | 92 | 85.5 | 11.5 |
| VNT075-1/2 | 1.2 | 11250 | 45000 | 35 | 111 | 81 | 15 |
| VNT075-5/8 | 2.42 | 16500 | 66000 | 42 | 137.5 | 96 | 21 |
| VNT075-3/4 | 3.89 | 23000 | 92000 | 43 | 171 | 126 | 22.5 |
| VNT075-7/8 | 6.08 | 28750 | 115000 | 48 | 191 | 141.5 | 24.5 |
