Brand: VENIT/OEM
Available in both G70 and G43 load ratings, these hooks can accommodate a wide range of lifting capacities.

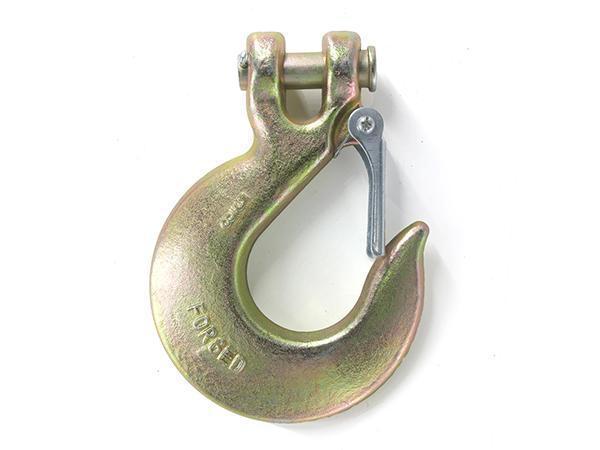

VNT127 G70 / G43 Clevis Slip Hook with Latch
Features
● G43 clevis slip hook with latch material: forged alloy steel;
● G70 clevis slip hook with latch material: carbon steel;
● It is strictly heat treated.
● It can be matched with G70 or G43 chains.
● It can be only used for lashing and pulling but not lifting.
● G43: Ultimate load is 3 times the Working Load Limit.
● G70: Ultimate load is 4 times the Working Load Limit.

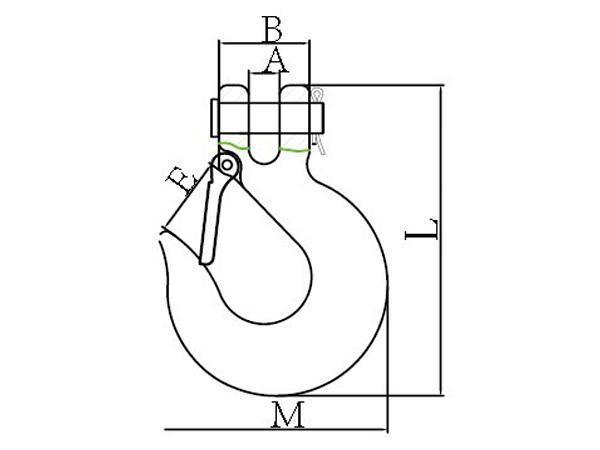

ITEM NO. | WEIGHT/lbs | WLL(lbs) | A±2 | B±2 | L±3 | M±3 | E±2 | |
G43 | G70 | |||||||
VNT127-1/4 | 0.53 | 1950 | 2750 | 11 | 27 | 103 | 70.5 | 21.5 |
VNT127-5/16 | 0.77 | 2875 | 4300 | 12.5 | 32 | 117 | 79 | 26 |
VNT127-3/8 | 1.26 | 4000 | 5250 | 15 | 38 | 134 | 93.5 | 32 |
VNT127-7/16 | 2.25 | 5000 | 7000 | 14.5 | 44 | 151.5 | 111 | 39 |
VNT127-1/2 | 3.06 | 6500 | 9000 | 19 | 48 | 168 | 124.5 | 37.5 |
VNT127-5/8 | 5.18 | 9250 | 13500 | 18.5 | 58.7 | 200.5 | 143 | 46.5 |
VNT127-3/4 | 12.4 | 12500 | 19250 | 30 | 81 | 256 | 188 | 58 |
