Brand: VENIT/OEM
The Swivel design allows the hook to rotate freely, providing easy maneuverability and reducing the risk of Tangling or Binding During Lifting.

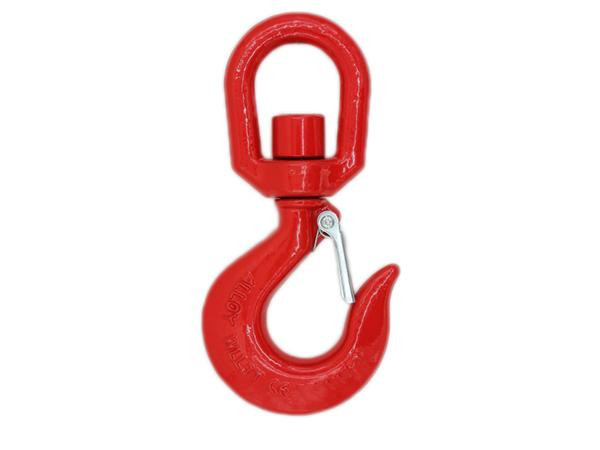

VNT132 G70 / G43 Forged Swivel Hook
Features
● IG70 material: alloy steel;
● G43 material: carbon steel;
● It is forged and heat treated.
● Alloy steel forged swivel hook: Ultimate load is 4.5 times the Working Load Limit.
● Carbon steel forged swivel hook: Ultimate load is 5 times the Working Load Limit.

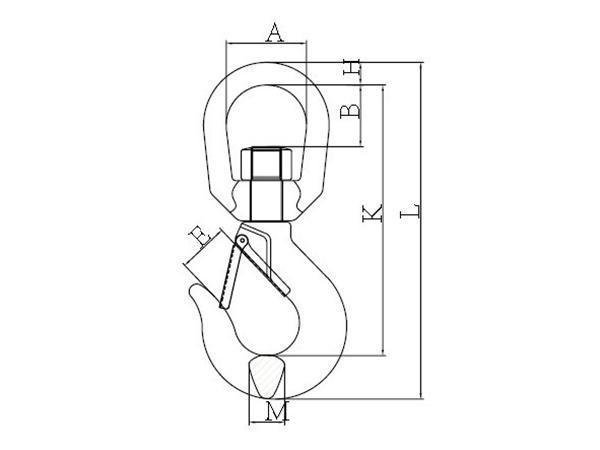

| ITEM NO. | WEIGHT/kg | ALLOY(322A) | CARBON(322C) | A±1 | E±2 | B±2 | H±0.6 | K±4 | L±5 | M±1 | ||
| WLL/T | B.L/T | WLL/T | B.L/T | |||||||||
| VNT132-A0.75T/C0.5T | 0.3 | 0.75 | 3.375 | 0.5 | 2.5 | 32 | 17 | 22.5 | 9 | 110 | 137 | 15 |
| VNT132-A1T/C0.75T | 0.34 | 1 | 4.5 | 0.75 | 3.75 | 32 | 17 | 22.5 | 9 | 108 | 136 | 16 |
| VNT132-A1.5T/C1T | 0.64 | 1.5 | 6.75 | 1 | 5 | 37.5 | 22.5 | 29.5 | 12 | 130 | 163.5 | 17.5 |
| VNT132-A2T/C1.5T | 1.05 | 2 | 9 | 1.5 | 7.5 | 42.5 | 21.5 | 33 | 15.8 | 150 | 192 | 21 |
| VNT132-A3T/C2T | 1.24 | 3 | 13.5 | 2 | 10 | 42.5 | 26 | 33 | 15.8 | 163 | 209 | 23 |
| VNT132-A5T/C3T | 3.98 | 5 | 22.5 | 3 | 15 | 48 | 32.5 | 39 | 18 | 191 | 246 | 33 |
| VNT132-A7T/C5T | 4 | 7 | 31.5 | 5 | 25 | 64 | 43 | 53 | 21.5 | 243.5 | 313 | 34 |
| VNT132-A11T/C7.5T | 7.09 | 11 | 49.5 | 7.5 | 37.5 | 68 | 49.5 | 53 | 26 | 277 | 364 | 41.5 |
| VNT132-A15T/C10T | 12.77 | 15 | 67.5 | 10 | 50 | 79 | 54.5 | 62 | 32 | 332 | 431 | 55.7 |
| VNT132-A22T/C15T | 24.5 | 22 | 99 | 15 | 75 | 105 | 87 | 108 | 40 | 427 | 543 | 70 |
| VNT132-A30T/C20T | 34.5 | 30 | 135 | 20 | 100 | 105 | 97.5 | 96 | 40 | 465 | 596 | 76.2 |
