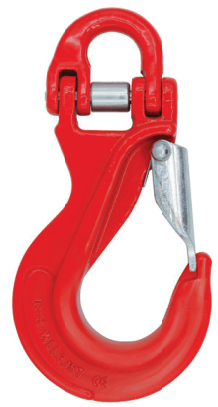

VNT006 G80 Hook with Half Link
Forged super alloy steel - Quenched and tempered.
Suitable for web sling and G80 chain EN818-2.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection
All load pin are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

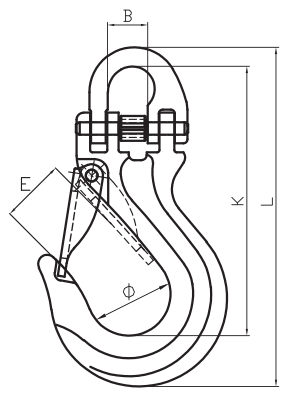

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | E±2 | B±1 | Φ±1.5 | K±3 | L±3 |
| VNT006-06 | 0.35 | 1.12 | 4.48 | 22 | 15 | 31 | 105 | 132 |
| VNT006-7/8 | 0.47 | 2 | 8 | 29 | 18 | 37 | 120 | 149 |
| VNT006-10 | 1.3 | 3.15 | 12.6 | 35.3 | 26 | 47 | 164 | 207 |
| VNT006-13 | 3 | 5.3 | 21.2 | 40 | 30 | 60 | 205 | 257 |
| VNT006-16 | 4.4 | 8 | 32 | 44 | 35 | 70 | 224 | 283.4 |
| VNT006-20 | 7.3 | 12.5 | 50 | 54.3 | 41.8 | 83 | 264 | 337.5 |
| VNT006-22 | 12 | 15 | 60 | 71 | 57 | 100 | 325.6 | 414.6 |
