Product Details

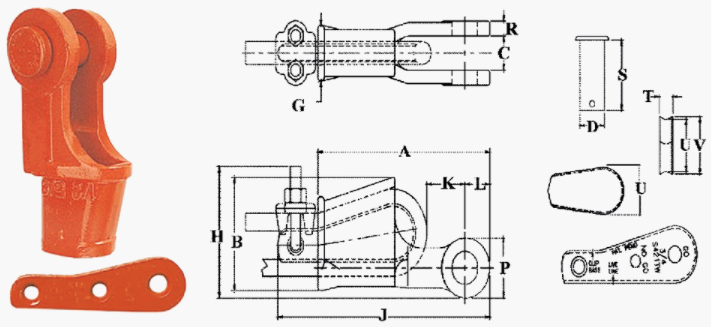

Utility Wedge Socket
| Rope Size | Dimensions(MM) | |||||||||||||||
| MM | INCH | A | B | C | D | G | H | J | K | L | P | R | S | T | U | V |
| +/- | ||||||||||||||||
| 2.29 | ||||||||||||||||
| 10 | 3/8 | 173 | 90.2 | 25.4 | 25.4 | 41.4 | 71.4 | 214 | 35.1 | 26.9 | 49.3 | 12.7 | 64.3 | 11.2 | 48.5 | 54.4 |
| 11 | 7/16 | 173 | 90.2 | 25.4 | 25.4 | 41.4 | 71.4 | 222 | 27.4 | 26.9 | 49.3 | 12.7 | 64.3 | 13.5 | 44.7 | 47.8 |
| 13 | 1/2 | 173 | 90.2 | 25.4 | 25.4 | 41.4 | 71.4 | 222 | 25.9 | 26.9 | 49.3 | 12.7 | 64.3 | 13.5 | 44.7 | 47.8 |
| 13 | 1/2 | 233 | 107 | 35.8 | 31.8 | 54.1 | 84.1 | 284 | 46.7 | 38.1 | 76.2 | 16 | 82.6 | 19.1 | 48.8 | 54.9 |
| 14 | 9/16 | 233 | 107 | 35.8 | 31.8 | 54.1 | 84.1 | 291 | 61 | 38.1 | 76.2 | 16 | 82.6 | 17.5 | 50.8 | 55.4 |
| 16 | 5/8 | 233 | 107 | 35.8 | 31.8 | 54.1 | 84.1 | 291 | 59.4 | 38.1 | 76.2 | 16 | 82.6 | 17.5 | 50.8 | 55.4 |
| 16 | 5/8 | 240 | 119 | 38.1 | 31.8 | 56.9 | 92.2 | 303 | 63 | 38.1 | 76.2 | 14.2 | 82.6 | 22.4 | 60.5 | 69.9 |
| 19 | 3/4 | 240 | 119 | 38.1 | 31.8 | 56.9 | 92.2 | 300 | 51.6 | 38.1 | 76.2 | 14.2 | 82.6 | 22.4 | 54.1 | 66.8 |
| 16 | 5/8 | 269 | 144 | 46 | 41.4 | 60.5 | 140 | 335 | 48.5 | 38.9 | 73.2 | 19.1 | 105 | 17.5 | 82.8 | 88.9 |
| 19 | 3/4 | 269 | 144 | 46 | 41.4 | 60.5 | 148 | 344 | 60.5 | 38.9 | 73.2 | 19.1 | 105 | 19.8 | 79.2 | 85.9 |
| 22 | 7/8 | 286 | 130 | 33.3 | 31.8 | 68.3 | — | — | 65 | 41.4 | 82.8 | 16.8 | 82.6 | 26.9 | 53.8 | 65 |
| 25 | 1 | 286 | 130 | 33.3 | 31.8 | 68.3 | — | — | 65 | 41.4 | 82.8 | 16.8 | 82.6 | 26.9 | 47.8 | 60.5 |
| 22 | 7/8 | 324 | 177 | 46 | 41.4 | 77.7 | 183 | 407 | 72.9 | 41.9 | 79.2 | 19.1 | 105 | 22.4 | 98.6 | 106 |
| 25 | 1 | 324 | 177 | 46 | 41.4 | 77.7 | 186 | 417 | 58.9 | 41.9 | 79.2 | 19.1 | 105 | 26.2 | 95.5 | 103 |
| 28 | 1-1/8 | 405 | 219 | 46 | 41.4 | 90.7 | 232 | 501 | 82.8 | 55.6 | 111 | 19.1 | 105 | 27.7 | 121 | 129 |
| 32 | 1-1/4 | 405 | 219 | 46 | 41.4 | 90.7 | 239 | 514 | 71.9 | 55.6 | 111 | 19.1 | 105 | 30.2 | 117 | 125 |
| 28 | 1-1/8 | 415 | 222 | 66.5 | 63.5 | 90.4 | 232 | 507 | 85.6 | 59.4 | 114 | 26.9 | 156 | 27.7 | 121 | 129 |
| 32 | 1-1/4 | 415 | 222 | 66.5 | 63.5 | 90.4 | 239 | 520 | 74.7 | 59.4 | 114 | 26.9 | 156 | 30.2 | 117 | 125 |
