Product Details

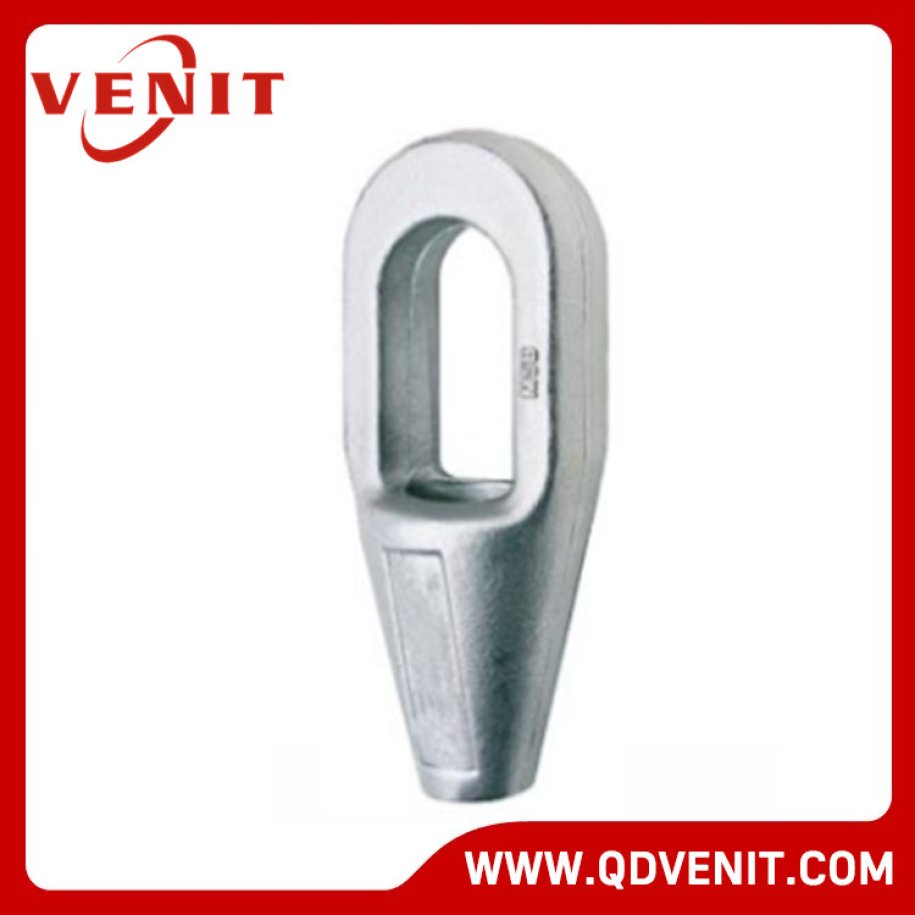

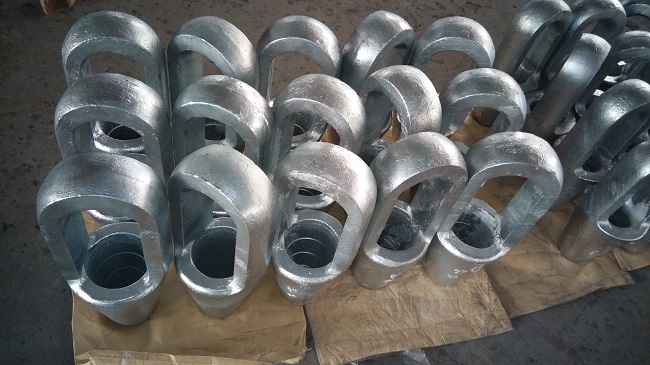

G417 Closed Spelter Socket
Forged Steel Sockets through 1-1/2", cast alloy steel 1-5/8" through 4".
Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 37, IPS or X IP (EIP), X X IP (EEIP), RRL, FC, or IWRC wire rope.
Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five.

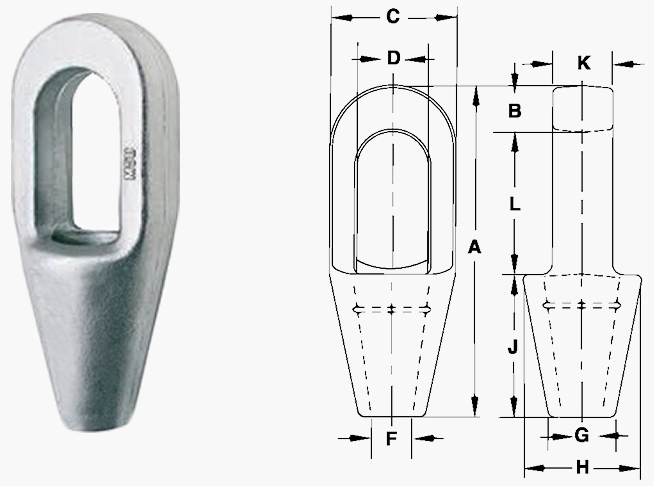

| Rope Dia. (INCH)** | Structural Strand Dia. (INCH) | Weight Each (KG) | Dimensions (INCH) | |||||||||
| A | B | C | D* | F | G | H | J | K | L | |||
| 1/4 | - | 0.23 | 4.50 | 0.50 | 1.50 | .88 | 0.38 | 0.69 | 1.56 | 2.25 | .50 | 1.75 |
| 5/16 - 3/8 | - | 0.34 | 4.88 | 0.62 | 1.69 | .97 | 0.50 | 0.81 | 1.69 | 2.25 | .69 | 2.00 |
| 7/16 - 1/2 | - | 0.68 | 5.44 | 0.69 | 2.00 | 1.16 | 0.56 | 0.94 | 1.88 | 2.50 | .88 | 2.25 |
| 9/16 - 5/8 | 1/2 | 1.13 | 6.31 | 0.81 | 2.63 | 1.41 | 0.69 | 1.12 | 2.38 | 3.00 | 1.00 | 2.50 |
| 3/4 | 9/16 - 5/8 | 1.92 | 7.56 | 1.06 | 3.00 | 1.66 | 0.81 | 1.25 | 2.75 | 3.56 | 1.25 | 3.00 |
| 7/8 | 11/16 - 3/4 | 3.28 | 8.75 | 1.25 | 3.63 | 1.88 | 0.94 | 1.50 | 3.25 | 4.00 | 1.50 | 3.50 |
| 1 | 13/16 - 7/8 | 4.76 | 9.88 | 1.38 | 4.13 | 2.30 | 1.13 | 1.75 | 3.75 | 4.44 | 1.75 | 4.00 |
| 1-1/8 | 15/16 -1 | 6.46 | 11.00 | 1.50 | 4.50 | 2.56 | 1.25 | 2.00 | 4.13 | 5.00 | 2.00 | 4.50 |
| 1-1/4 -1-3/8 | 1-1/16 -1-1/8 | 8.95 | 12.12 | 1.63 | 5.30 | 2.81 | 1.50 | 2.25 | 4.75 | 5.50 | 2.25 | 5.00 |
| 1-1/2 | 1-3/16 - 1-1/4 | 13.24 | 13.94 | 1.94 | 5.33 | 3.19 | 1.63 | 2.75 | 5.25 | 6.00 | 2.50 | 6.00 |
| **1-5/8 | 1-5/16 - 1-3/8 | 16.32 | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 3.00 | 5.50 | 6.50 | 2.75 | 6.50 |
| **1-3/4 - 1-7/8 | 1-7/16 - 1-5/8 | 25.96 | 17.25 | 2.19 | 6.75 | 3.75 | 2.00 | 3.13 | 6.38 | 7.50 | 3.00 | 7.56 |
| **2 - 2-1/8 | 1-11/16 - 1-3/4 | 35.83 | 19.50 | 2.44 | 7.63 | 4.38 | 2.25 | 3.75 | 7.38 | 8.50 | 3.25 | 8.56 |
| **2-1/4 - 2-3/8 | 1-13/16 - 1-7/8 | 47.62 | 21.13 | 2.63 | 8.50 | 5.00 | 2.50 | 4.00 | 8.25 | 9.00 | 3.63 | 9.50 |
| **2-1/2 - 2-5/8 | 1-15/16 - 2-1/8 | 63.5 | 23.50 | 3.12 | 9.50 | 5.50 | 2.88 | 4.50 | 9.25 | 9.75 | 4.00 | 10.62 |
| **2-3/4 - 2-7/8 | 2-3/16 - 2-7/16 | 99.79 | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 4.88 | 10.19 | 11.00 | 4.88 | 11.25 |
| **3 - 3-1/8 | 2-1/2 - 2-5/8 | 125 | 27.00 | 3.25 | 11.50 | 6.75 | 3.38 | 5.25 | 11.50 | 12.00 | 5.25 | 11.75 |
| **3-1/4 - 3-3/8 | 2-3/4 - 2-7/8 | 142 | 29.25 | 4.00 | 12.25 | 7.25 | 3.62 | 5.75 | 12.25 | 13.00 | 5.75 | 12.25 |
| **3-1/2 - 3-5/8 | 3 - 3-1/8 | 181 | 31.00 | 4.00 | 13.00 | 7.75 | 3.88 | 6.50 | 13.00 | 14.00 | 6.25 | 13.00 |
| ** 3-3/4 - 4 | - | 246 | 33.25 | 4.25 | 14.25 | 8.50 | 4.25 | 7.25 | 14.25 | 15.00 | 7.00 | 14.00 |
