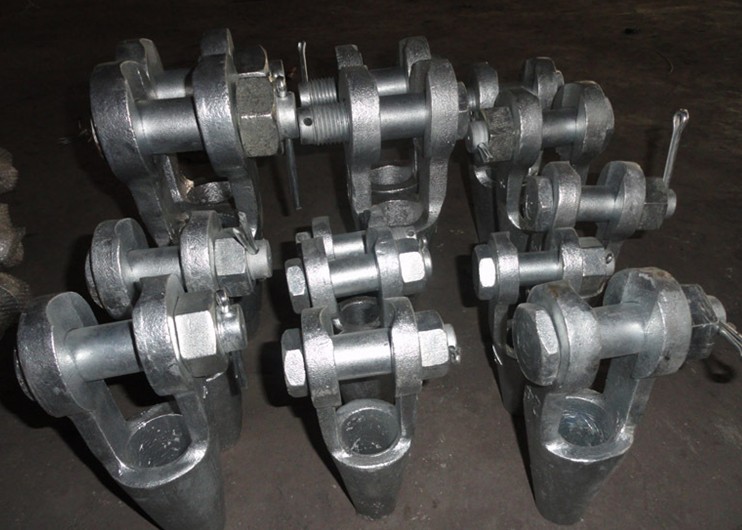

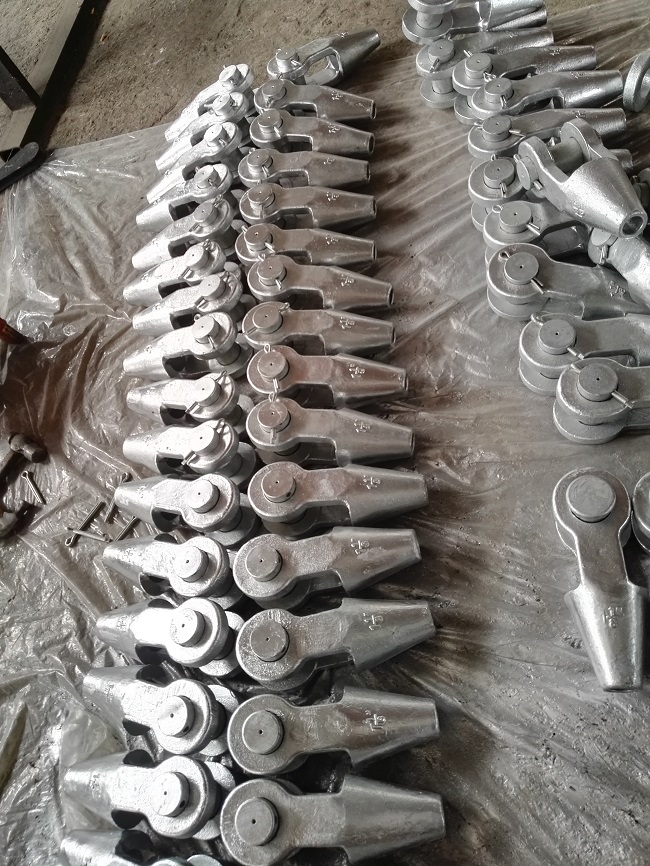

G416 Open Spelter Socket
Forged Steel Sockets through 1-1/2", cast alloy steel 1-5/8" through 4".
Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 37, IPS or X IP (EIP), X X IP (EEIP), RRL, FC, or IWRC wire rope.
Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five.

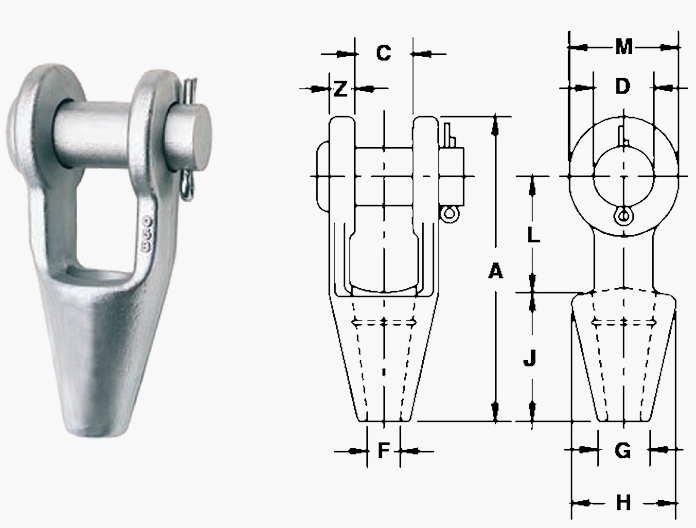

| Rope Dia. (INCH) | Structural Strand Dia.(INCH) | Weight Each (KG) | Dimensions (INCH) | |||||||||
| A | C | D | F | G | H | J | L | M | Z | |||
| 1/4 | - | 0.5 | 4.56 | .75 | .69 | .38 | .69 | 1.56 | 2.25 | 1.56 | 1.31 | .36 |
| 5/16-3/8 | - | 0.59 | 4.84 | .81 | .81 | .50 | .81 | 1.69 | 2.25 | 1.75 | 1.50 | .44 |
| 7/16-1/2 | - | 1.02 | 5.56 | 1.00 | 1.00 | .56 | .94 | 1.88 | 2.50 | 2.00 | 1.88 | .50 |
| 9/16-5/8 | 1/2 | 1.63 | 6.75 | 1.25 | 1.19 | .69 | 1.13 | 2.25 | 3.00 | 2.50 | 2.25 | .56 |
| 3/4 | 9/16-5/8 | 2.64 | 7.94 | 1.50 | 1.38 | .81 | 1.25 | 2.62 | 3.50 | 3.00 | 2.62 | .62 |
| 7/8 | 11/16-3/4 | 4.38 | 9.25 | 1.75 | 1.63 | .94 | 1.50 | 3.25 | 4.00 | 3.50 | 3.13 | .80 |
| 1 | 13/16-7/8 | 7.03 | 10.56 | 2.00 | 2.00 | 1.13 | 1.75 | 3.75 | 4.50 | 4.00 | 3.75 | .88 |
| 1-1/8 | 15/16-1 | 9.75 | 11.81 | 2.25 | 2.25 | 1.25 | 2.00 | 4.12 | 5.00 | 4.62 | 4.12 | 1.00 |
| 1-1/4 - 1-3/8 | 1-1/16 - 1-1/8 | 14.1 | 13.19 | 2.50 | 2.50 | 1.50 | 2.25 | 4.75 | 5.50 | 5.00 | 4.75 | 1.13 |
| 1-1/2 | 1-3/16 - 1-1/4 | 21.4 | 15.12 | 3.00 | 2.75 | 1.63 | 2.75 | 5.25 | 6.00 | 6.00 | 5.38 | 1.19 |
| *1-5/8 | 1-5/16 - 1-3/8 | 24.9 | 16.25 | 3.00 | 3.00 | 1.75 | 3.00 | 5.50 | 6.50 | 6.50 | 5.75 | 1.31 |
| *1-3/4 - 1-7/8 | 1-7/16 - 1-5/8 | 37.2 | 18.25 | 3.50 | 3.50 | 2.00 | 3.13 | 6.38 | 7.50 | 7.00 | 6.50 | 1.56 |
| *2 - 2-1/8 | 1-11/16 - 1-3/4 | 59 | 21.50 | 4.00 | 3.75 | 2.25 | 3.75 | 7.38 | 8.50 | 9.00 | 7.00 | 1.81 |
| *2-1/4 - 2-3/8 | 1-13/16 - 1-7/8 | 76 | 23.50 | 4.50 | 4.25 | 2.50 | 4.00 | 8.25 | 9.00 | 10.00 | 7.75 | 2.13 |
| *2-1/2 - 2-5/8 | 1-15/16 - 2-1/8 | 114 | 25.50 | 5.00 | 4.75 | 2.88 | 4.50 | 9.25 | 9.75 | 10.75 | 8.50 | 2.38 |
| *2-3/4 - 2-7/8 | 2-3/16 - 2-7/16 | 143 | 27.25 | 5.25 | 5.00 | 3.12 | 4.88 | 10.50 | 11.00 | 11.00 | 9.00 | 2.88 |
| *3 - 3-1/8 | 2-1/2 - 2-5/8 | 172 | 29.00 | 5.75 | 5.25 | 3.38 | 5.25 | 11.12 | 12.00 | 11.25 | 9.50 | 3.00 |
| *3-1/4 - 3-3/8 | 2-3/4 - 2-7/8 | 197 | 30.88 | 6.25 | 5.50 | 3.62 | 5.75 | 11.88 | 13.00 | 11.75 | 10.00 | 3.12 |
| *3-1/2 - 3-5/8 | 3 - 3-1/8 | 255 | 33.25 | 6.75 | 6.00 | 3.88 | 6.50 | 12.38 | 14.00 | 12.50 | 10.75 | 3.25 |
| *3-3/4 - 4 | - | 355 | 36.25 | 7.50 | 7.00 | 4.25 | 7.25 | 13.62 | 15.00 | 13.50 | 12.50 | 3.50 |
