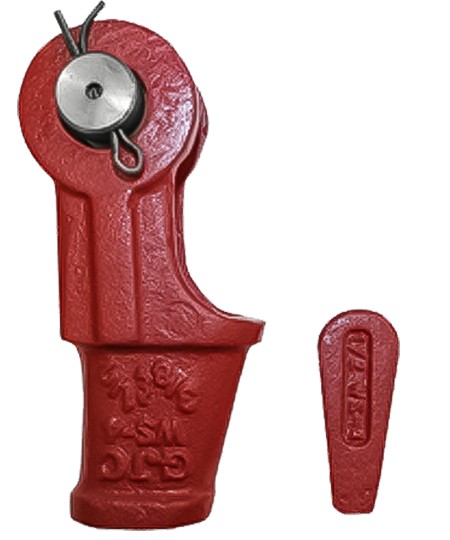

US Type Wedge Socket
Basket is cast steel and individually magnetic particle inspected.
• Blue-largest wire line size for socket.
• Black-mid size wire line for socket.
• Orange - smallest wire line size for socket.
• By simply changing out the wedge, each socket can be utilized for various wire line sizes (Ensure correct wedge is used for wire rope size).
• Cast into each wedge is the model number of the socket and the wire line size for which the wedge is to be used.
• Load pin is forged and headed on one end.
| Rope Size | Dimensions(MM) | |||||||||||||||
| MM | INCH | A | B | C | D | G | H | J* | K* | L | P | R | S | T | U | V |
| +/- | ||||||||||||||||
| 2.29 | ||||||||||||||||
| 9-10 | 3/8 | 145 | 69.1 | 20.6 | 20.6 | 35.1 | 77.7 | 198 | 47.8 | 22.4 | 39.6 | 11.2 | 54.1 | 11.2 | 31.8 | 35.1 |
| 11-13 | 1/2 | 175 | 88.1 | 25.4 | 25.4 | 41.1 | 95.5 | 226 | 32 | 26.9 | 49.3 | 12.7 | 65 | 13.5 | 44.5 | 47.8 |
| 14-16 | 5/8 | 210 | 109 | 31.8 | 30.2 | 53.8 | 114 | 273 | 50.5 | 31 | 57.2 | 14.2 | 82.6 | 17.5 | 51 | 55.5 |
| 18-19 | 3/4 | 251 | 130 | 38.1 | 35.1 | 62 | 134 | 314 | 61.2 | 35.6 | 66.8 | 16.8 | 92.2 | 19.8 | 59.5 | 65 |
| 20-22 | 7/8 | 286 | 149 | 44.5 | 41.4 | 68.5 | 156 | 365 | 63 | 42.4 | 79.5 | 19.1 | 109 | 22.4 | 68.5 | 74.5 |
| 24-26 | 1 | 325 | 161 | 51 | 51 | 74.7 | 177 | 414 | 77.2 | 51 | 95.5 | 22.4 | 119 | 26.2 | 73 | 83.5 |
| 28 | 1-1/8 | 365 | 176 | 57 | 57 | 84 | 194 | 466 | 65 | 57 | 108 | 25.4 | 138 | 27.9 | 82.6 | 90.5 |
| 30-32 | 1-1/4 | 415 | 222 | 66.5 | 63.5 | 90.5 | 239 | 520 | 74.7 | 59.5 | 114 | 26.9 | 156 | 30.2 | 117 | 125 |
