Product Details

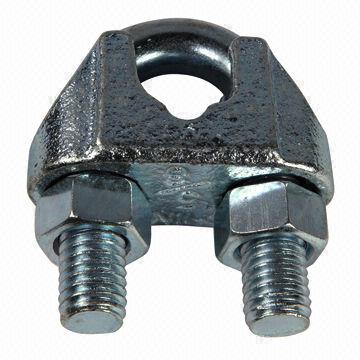

US Type Malleable Wire Rope Clip
Product Features:
Malleable Cast Body, Steel U Bolt.
Zinc Plated.
According to Federal Specification FF-C-450 D, Type 1, Class 2.
Packing: Cartons or Gunny bags, then pack on pallets.

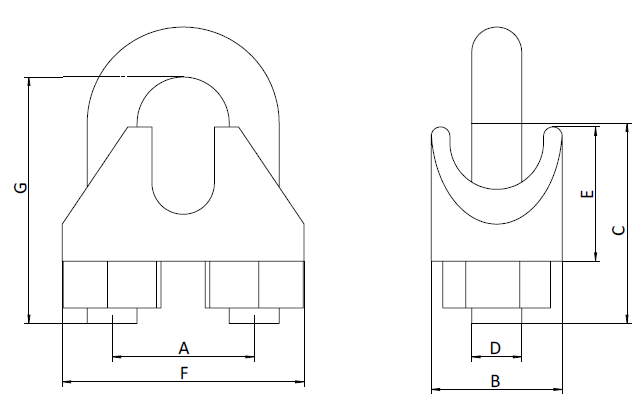

| Rope Size (in) | Torque in lbs (ft) | Weight Per 100 (lbs) | Dimensions (in) | ||||||
| A | G | F | D | C | E | B | |||
| 1/16 | 2 | 3 | 0.38 | 0.65 | 0.69 | 0.15 | 0.45 | 0.38 | 0.45 |
| 1/8 | 3 | 4 | 0.50 | 0.81 | 0.94 | 0.18 | 0.50 | 0.50 | 0.56 |
| 3/16 | 4.5 | 6.3 | 0.56 | 0.94 | 1.06 | 0.25 | 0.56 | 0.56 | 0.63 |
| 1/4 | 15 | 13 | 0.75 | 1.19 | 1.31 | 0.31 | 0.75 | 0.69 | 0.75 |
| 5/16 | 15 | 15 | 0.75 | 1.31 | 1.44 | 0.31 | 0.84 | 0.75 | 0.75 |
| 3/8 | 30 | 21 | 0.88 | 1.63 | 1.63 | 0.38 | 1.00 | 0.84 | 0.88 |
| 7/16 | 40 | 37 | 1.06 | 2.00 | 1.88 | 0.44 | 1.19 | 1.00 | 1.06 |
| 1/2 | 45 | 37 | 1.06 | 2.00 | 1.88 | 0.44 | 1.19 | 1.00 | 1.06 |
| 9/16 | 50 | 59 | 1.25 | 2.31 | 2.09 | 0.50 | 1.38 | 1.25 | 1.28 |
| 5/8 | 75 | 59 | 1.25 | 2.31 | 2.09 | 0.50 | 1.38 | 1.25 | 1.28 |
| 3/4 | 75 | 84 | 1.31 | 2.56 | 2.38 | 0.56 | 1.56 | 1.44 | 1.56 |
| 7/8 | 130 | 125 | 1.63 | 3.06 | 2.88 | 0.63 | 1.81 | 1.75 | 1.81 |
| 1 | 130 | 166 | 1.88 | 3.44 | 3.00 | 0.63 | 2.00 | 2.06 | 2.00 |
| 1 1/8 | 200 | 243 | 2.00 | 4.00 | 3.38 | 0.75 | 2.75 | 2.19 | 2.06 |
