Product Details

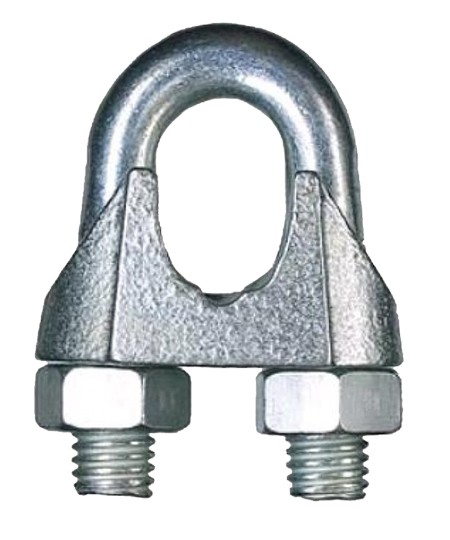

DIN741 Type Malleable Wire Rope Clip
Product Features:
Finished: Electric Galvanized

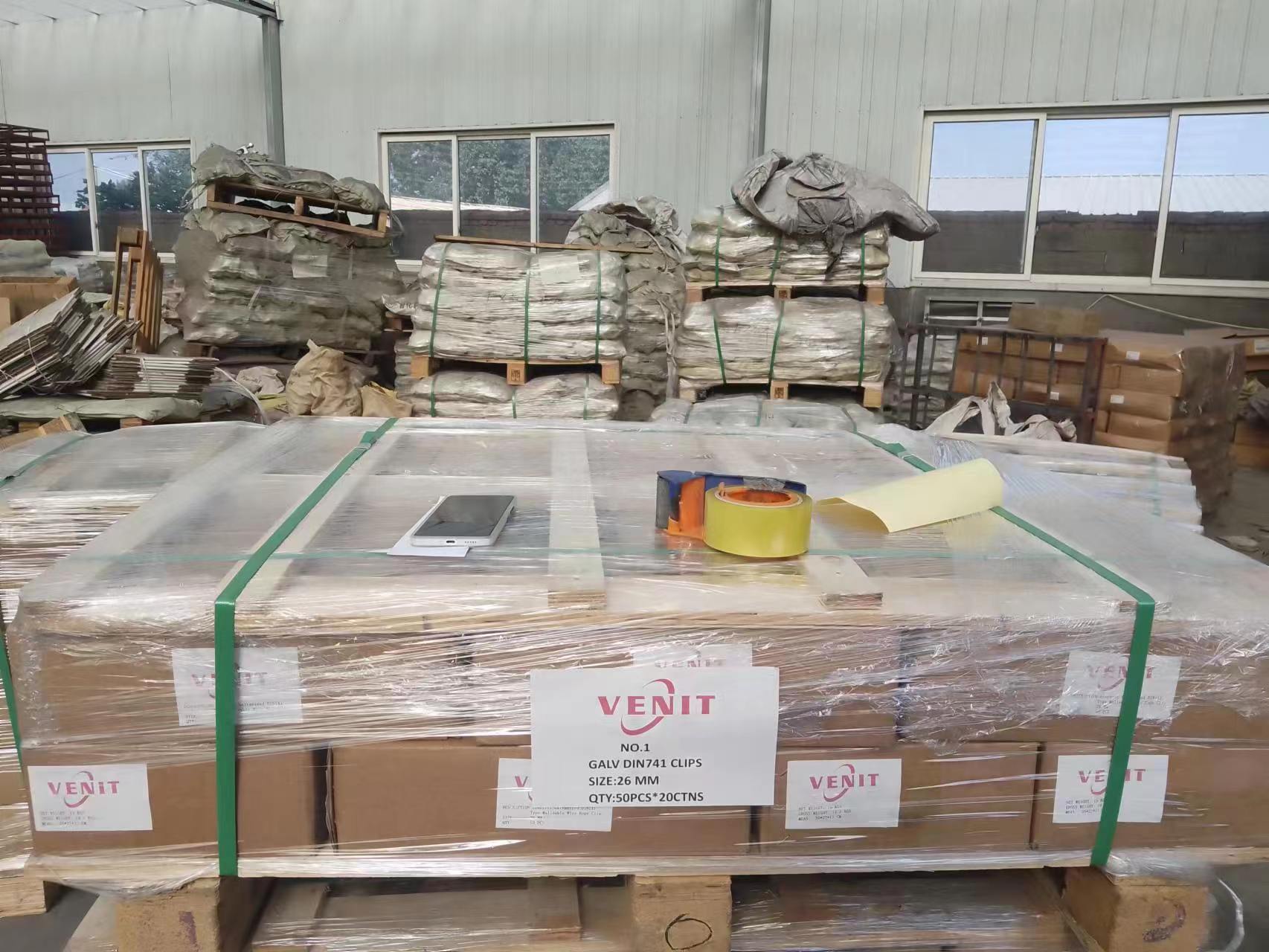

Packing: Cartons then pack on pallets.

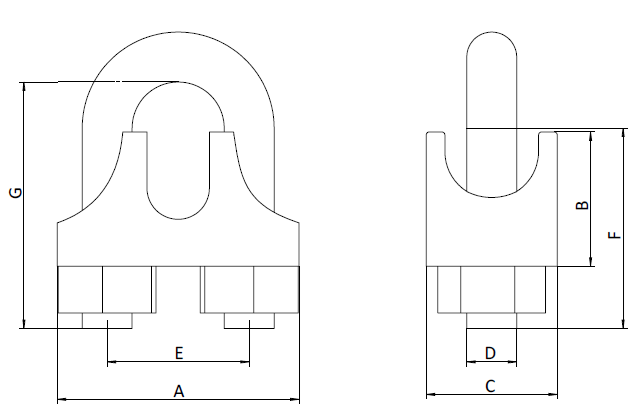

| SIZE mm | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| 3 | 21 | 10 | 10 | 4 | 9 | 12 | 20 |
| 5 | 23 | 10 | 11 | 5 | 11 | 13 | 24 |
| 6 | 26 | 11 | 12 | 5 | 13 | 15 | 28 |
| 8 | 30 | 15 | 14 | 6 | 16 | 19 | 34 |
| 10 | 34 | 17 | 18 | 8 | 19 | 22 | 42 |
| 11 | 36 | 18 | 19 | 8 | 20 | 22 | 44 |
| 13 | 42 | 21 | 23 | 10 | 24 | 30 | 55 |
| 14 | 44 | 22 | 23 | 10 | 25 | 30 | 57 |
| 16 | 50 | 26 | 26 | 12 | 29 | 33 | 63 |
| 19 | 54 | 30 | 29 | 12 | 32 | 38 | 75 |
| 22 | 61 | 34 | 33 | 14 | 37 | 44 | 85 |
| 26 | 65 | 37 | 35 | 14 | 41 | 45 | 95 |
| 30 | 74 | 43 | 37 | 16 | 48 | 50 | 110 |
| 34 | 80 | 50 | 42 | 16 | 52 | 55 | 120 |
| 40 | 88 | 55 | 45 | 16 | 58 | 60 | 140 |
| 45 | 97 | 60 | 49 | 18 | 65 | 75 | 163 |
| 50 | 106 | 65 | 51 | 20 | 72 | 77 | 170 |
