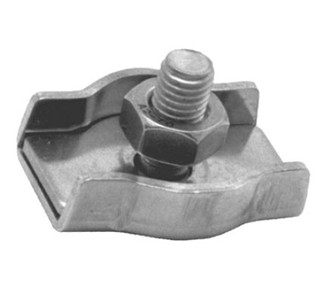

Simplex Wire Rope Clamp
The Simplex clip is ideal for 7×19 wire rope, not recommended for use with plastic coated wire rope.
Prepare the wire rope ends to the manufacturers specification.
Match your stainless steel wire rope to the correct size Simplex clip. Miss-matching could result in serious injury or damage.
Remove the locking nuts and the fixing plate ready to accept your stainless steel wire.
| Size | A | B | C | D | E | F | G | Unit |
| Weight | ||||||||
| MM | MM | MM | MM | MM | MM | MM | MM | KG |
| 2 | 17,5 | 12 | 5 | M 4 | 7,5 | 1 | 1 | 0,002 |
| 3 | 17,5 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 0,002 |
| 4 | 22 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 0,004 |
| 5 | 24 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 0,004 |
| 6 | 30 | 23 | 10 | M 6 | 17 | 1,5 | 1,5 | 0,005 |
| 8 | 36 | 30 | 14 | M 8 | 22 | 2 | 2 | 0,050 |
| 10 | 42 | 34 | 16 | M 10 | 25 | 3 | 2 | 0,090 |
