Product Details

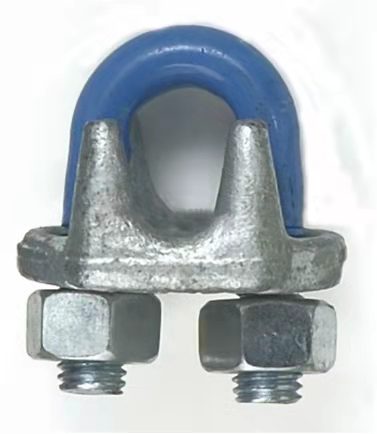

EN13411-5 Type B US Type Drop Forged Wire Rope Clip
Drop Forged Steel Wire Rope Clips EN13411-5 Type B, US Type
Material: Steel Forged
Finished: Hot Dip Galvanized
Meets the performance requirements of Federal Specification FF-C450 TYPE 1, CLASS 1
Packing: In the carton and then on the pallet

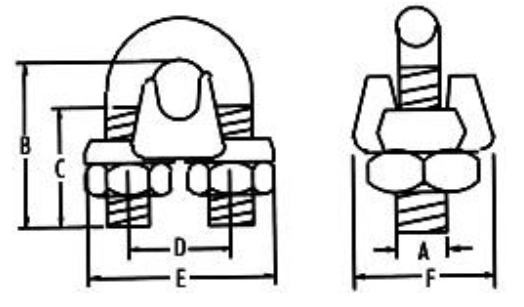

| SIZE IN | DEMENSION | WEIGHT | |||||
| /100PCS | |||||||
| A IN | B MM | C MM | D MM | E MM | F MM | (KGS) | |
| 1/8” | 7/32 | 18 | 11 | 12 | 23 | 20 | 3 |
| 3/16′ | 1/4” | 24 | 14 | 15 | 29 | 23 | 5 |
| 1/4” | 5/16” | 26 | 15 | 19 | 36 | 29 | 8.5 |
| 5/16” | 3/8” | 35 | 19 | 22 | 43 | 33 | 13 |
| 3/8” | 7/16” | 38 | 19 | 25 | 49 | 41 | 20 |
| 7/16” | 1/2” | 47 | 25 | 30 | 57 | 46 | 32 |
| 1/2” | 9/16” | 47 | 25 | 30 | 58 | 48 | 32 |
| 9/16” | 9/16” | 57 | 32 | 33 | 63 | 52 | 44 |
| 5/8′ | 9/16” | 60 | 32 | 33 | 63 | 52 | 44 |
| 3/4” | 5/8” | 70 | 36 | 38 | 72 | 56 | 63 |
| 7/8” | 3/4” | 79 | 41 | 44 | 80 | 62 | 93 |
| 1 | 3/4” | 89 | 45 | 48 | 88 | 66 | 110 |
| 1-1/8” | 3/4” | 98 | 51 | 51 | 91 | 71 | 120 |
| 1-1/4” | 7/8” | 108 | 56 | 59 | 105 | 80 | 170 |
| 1-3/8” | 7/8” | 118 | 56 | 60 | 106 | 80 | 200 |
| 1-1/2” | 7/8” | 125 | 60 | 66 | 113 | 87 | 220 |
| 1-5/8” | 1 | 135 | 66 | 70 | 120 | 92 | 330 |
| 1-3/4” | 1-1/8” | 146 | 70 | 78 | 134 | 97 | 420 |
| 2” | 1-1/4” | 161 | 75 | 85 | 147 | 111 | 610 |
| 2-1/4” | 1-1/4” | / | / | / | / | / | 660 |
