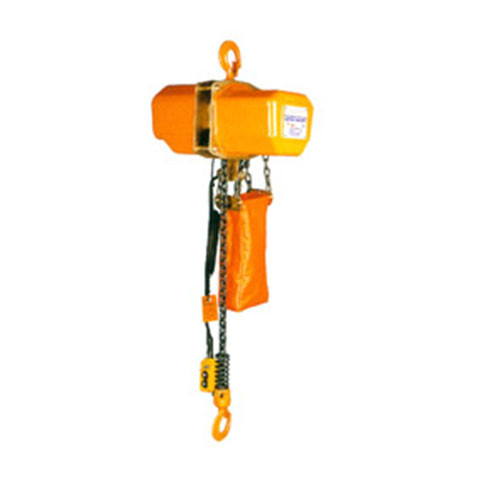

HEHA Type Electric Chain Hoist
Part No. | HEHA0500 | HEHA1000 | HEHA2000 | HEHA3000 | ||
Capacity | ton | 0.5 | 1 | 2 | 3 | |
Standard Lift | m | 3 | 3 | 3 | 3 | |
Proof Load | Kn | 6.3 | 12.5 | 25 | 37.5 | |
Hoist Motor | Kw | 0.8 | 1.1 | 1.1 | 1.1 | |
No.of Falls of Load Chain |
| 1 | 1 | 2 | 3 | |
Load Chain Diameter | mm | 7.1 | 7.1 | 7.1 | 7.1 | |
Lift Speed | m/min | 5.8 | 4.3 | 2.15 | 1.43 | |
Dimensions(mm) | A | 150 | 150 | 173 | 188 | |
B | 112 | 112 | 90 | 77 | ||
C | 250 | 250 | 250 | 250 | ||
D | 245 | 245 | 245 | 245 | ||
k | 27 | 30 | 38 | 56 | ||
∮ | 45 | 50 | 65 | 70 | ||
F | 85 | 105 | 136 | 164 | ||
J | 17 | 26 | 36 | 45 | ||
P | 14 | 15 | 22 | 30 | ||
L | 550 | 590 | 770 | 775 | ||
Net Weight | kg | 44 | 46 | 60 | 68 | |
Characteristics
-With suspension hook, push & geared or electric trolley.
-Standard lift height 3m, control cable 2.5m.
-Operating voltrage 220-440V, 50/60HZ, 1-3 phase.
-Low voltage control 36V is standard.
-Height efficient energy-saving motor, asbestos free brake system.
-Light weight, compact and solid body case.
-Top and bottom hooks are fitted with asfety latches as standard.
-Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous over loading or abuse, the hook does not fracture but will slowly yield.
-Solid chain bucket.
-Super string surface hardened chain.
-Limit switch devices fitted at both top & botton ends, switch off power automatically to prevent load chain from running out.
-Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
