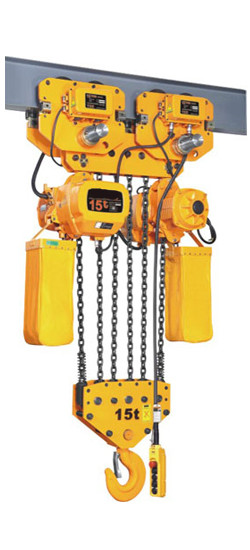

15T Electric Chain Hoist
Shell: Light aluminum alloy shell shall be adopted wich is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device:It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The Iimit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
24V/36V decice: It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain bag: It shall be light, handsome and durable.
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable Alloy steel chain.
Techiacal Parameters:
| Model | Capacity | Lifting speed (m/min) | Motor power (kw) | Rotation speed (r/min) | Insulation grade | Power supply | Control voltage | No.of chain | Spec. of load chain | Net weight (kg) |
| 15-06S | 15t | 1.8 | 3.0×2 | 1440 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 6 | Φ11.2 | 382 |
| 15-06D | 15t | 1.8/0.6 | 3.0×2/1.0×2 | 2880/960 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 6 | Φ11.2 | 455 |
Size specification
| Model | H | A | B | D | E | W | U | R | T |
| 15-06S | 1310 | 630 | 315 | 1070 | 535 | 926 | 560 | 142 | 231 |
| 15-06D | 1310 | 670 | 388 | 1070 | 535 | 926 | 560 | 142 | 231 |
