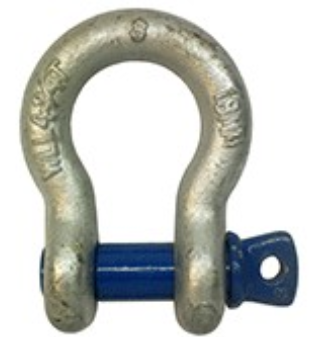

Grade S Bow Shackle with Screw Pin AS2741
Brand: VENIT/OEM
The Bow Shape of the Shackle provides a secure and stable connection point. Its compact design and smooth curves make it easy to handle and install, even in tight spaces.
Product Details
Grade S Bow Shackle with Screw Pin AS2741

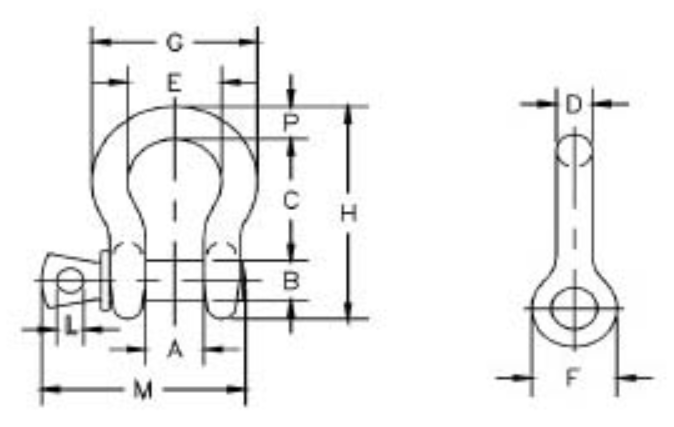

| Nominal | Working | Weight | Dimensions (INCH) | Tolerance+/- | |||||||||||
| Size(INCH) | LoadLimit(T)* | Each(LBS) | A | B | C | D | E | F | G | H | L | M | P | C | A |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.12 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.1 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.38 | 0.25 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.19 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.66 | 0.31 | 0.06 | 0.06 |
| 3/8 | 1 | 0.31 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.03 | 0.38 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.38 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.38 | 0.44 | 0.13 | 0.06 |
| 1/2 | 2 | 0.72 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.37 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.35 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.62 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.03 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.07 | 1.06 | 25 | 0.06 |
| 1-1/8 | 9-1/2 | 7.41 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.59 | 1.25 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.5 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.16 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 13.53 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.84 | 1.5 | 0.25 | 0.13 |
| 1-1/2 | 17 | 17.2 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.35 | 1.62 | 0.25 | 0.13 |
| 1-3/4 | 25 | 27.78 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.08 | 2.25 | 0.25 | 0.13 |
| 2 | 35 | 45 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.34 | 2.4 | 0.25 | 0.13 |
| 2-1/2 | 55 | 85.75 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 0.25 | 0.25 |
