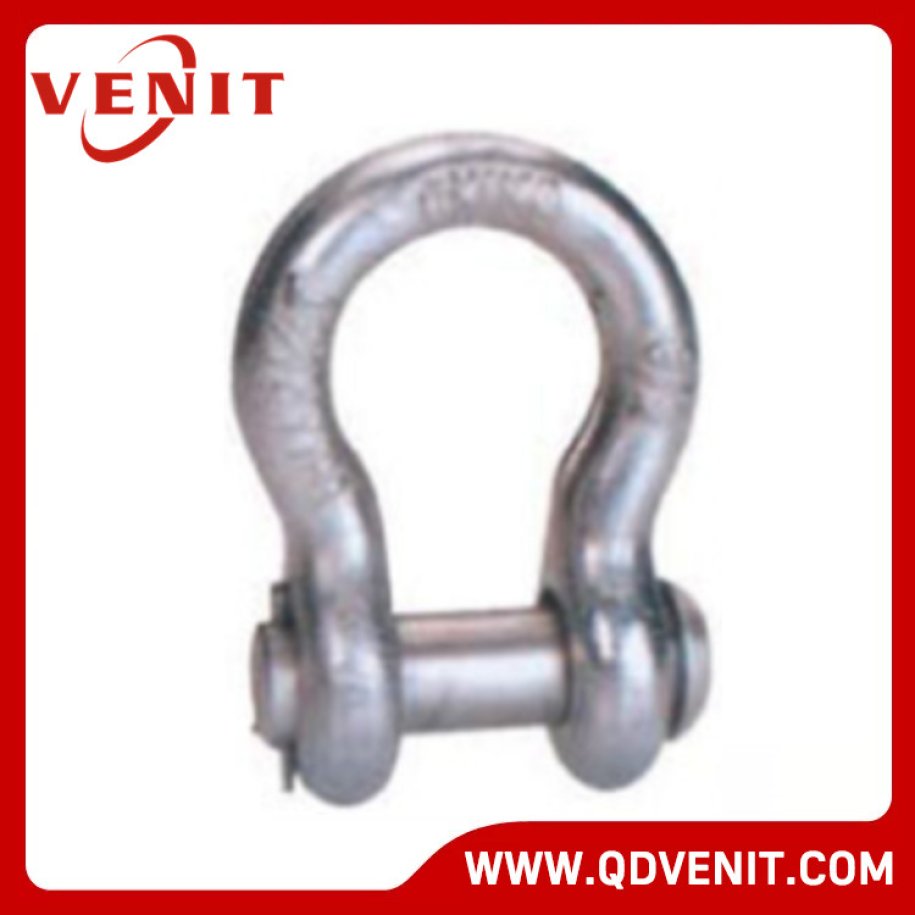

G213 Bow Type Shackle with Round Pin
Brand: VENIT/OEM
The round pin features a secure locking mechanism that ensures the shackle stays connected and prevents accidental detachment, providing added peace of mind and safety.
Product Details
G213 Bow Type Shackle with Round Pin
| Nominal | Working | Dimensions | Weight | |||||||||
| Size | Load | (MM) | Each | |||||||||
| Limit | (KG) | |||||||||||

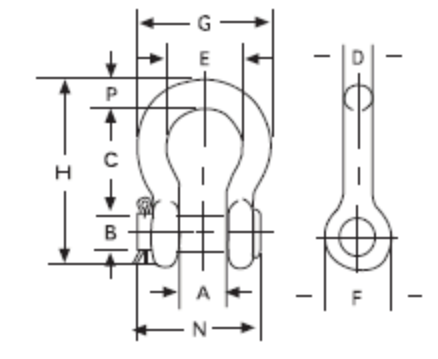

| (INCH) | (TON) | A | B | C | D | E | F | G | H | N | P | |
| 1/4 | 1/2 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 34.00 | 6.35 | 0.06 |
| 5/16 | 3/4 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 40.40 | 7.85 | 0.08 |
| 3/8 | 1 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 47.20 | 9.65 | 0.13 |
| 7/16 | 1-1/2 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 54.00 | 11.20 | 0.17 |
| 1/2 | 2 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 60.50 | 12.70 | 0.32 |
| 5/8 | 3-1/4 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 103.00 | 74.00 | 16.00 | 0.68 |
| 3/4 | 4-3/4 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 87.00 | 20.60 | 1.05 |
| 7/8 | 6-1/2 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 96.50 | 24.60 | 1.58 |
| 1 | 8-1/2 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 115.00 | 25.40 | 2.27 |
| 1-1/8 | 9-1/2 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 131.00 | 190.00 | 130.00 | 31.80 | 3.16 |
| 1-1/4 | 12 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 146.00 | 210.00 | 140.00 | 35.10 | 4.42 |
| 1-3/8 | 13-1/2 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 162.00 | 233.00 | 156.00 | 38.10 | 6.01 |
| 1-1/2 | 17 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 175.00 | 254.00 | 165.00 | 41.10 | 7.82 |
| 1-3/4 | 25 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 225.00 | 313.00 | 197.00 | 54.00 | 13.40 |
| 2 | 35 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 253.00 | 348.00 | 222.00 | 51.00 | 20.80 |
