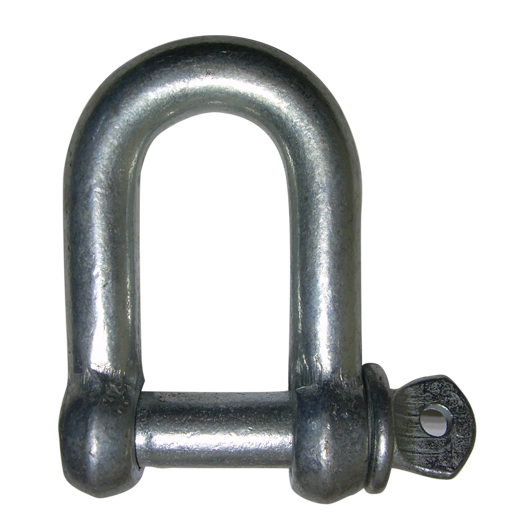

European Type Commercial D Shackle with Screw Pin
Brand: VENIT/OEM
Our Shackle is crafted from materials that are resistant to corrosion, ensuring it maintains its durability and strength even in harsh environments.
Product Details
European Type Commercial D Shackle with Screw Pin

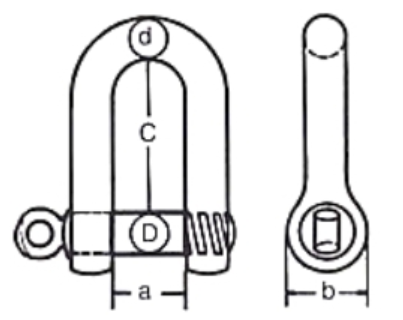

| SIZE | SWL | Dimensions (MM) | Weight | ||||
| MM | KG | D | d | a | c | b | Per 100 pcs |
| MM | MM | MM | MM | MM | KG | ||
| 5 | 80 | 5 | 5 | 10 | 19 | 11 | 1.9 |
| 6 | 100 | 6 | 6 | 13 | 25 | 14 | 3.4 |
| 8 | 200 | 8 | 8 | 16 | 32 | 18 | 7 |
| 10 | 320 | 10 | 10 | 19 | 38 | 20 | 13 |
| 12 | 520 | 12 | 12 | 25 | 51 | 26 | 24 |
| 16 | 800 | 16 | 16 | 32 | 64 | 33 | 50 |
| 20 | 1100 | 20 | 20 | 38 | 76 | 40 | 80 |
| 22 | 1500 | 22 | 22 | 44 | 89 | 50 | 130 |
| 25 | 2100 | 25 | 25 | 51 | 100 | 57 | 200 |
| 28 | 3000 | 28 | 28 | 57 | 115 | 68 | 300 |
| 32 | 3500 | 32 | 32 | 64 | 127 | 73 | 430 |
| 38 | 5000 | 38 | 38 | 76 | 152 | 85 | 675 |
| 45 | 7000 | 45 | 45 | 90 | 180 | 96 | 1250 |
| 50 | 8000 | 50 | 50 | 102 | 200 | 108 | 1750 |
