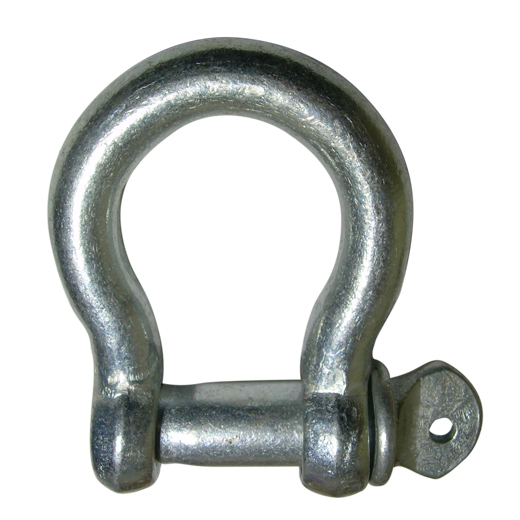

European Type Commercial Bow Shackle

European Type Commercial Bow Shackle with Screw Pin

Brand: VENIT/OEM

Our Shackles are ideal for a wide range of applications, including Marine, industrial and construction. Whether it's fixing a boat, lifting heavy objects, or connecting equipment, our products can solve it.

Product Details

European Type Commercial Bow Shackle with Screw Pin

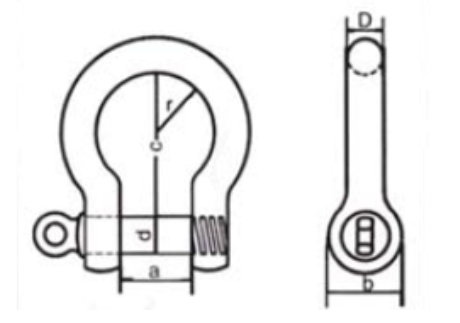

SIZE	SWL	D	d	a	c	r	d	Approx
SIZE	SWL	D	d	a	c	r	d	Per 100 pcs
MM	KG	MM	MM	MM	MM	MM	MM	KG
5	80	5	5	10	19	8	11	1.9
6	100	6	6	13	25	10	14	3.4
8	200	8	8	16	32	12	18	7
10	320	10	10	19	38	16	20	13
12	520	12	12	25	51	19	26	26
16	800	16	16	32	64	28	33	50
20	1100	20	20	38	76	33	40	80
22	1500	22	22	44	89	37	50	130
25	2100	25	25	51	100	40	57	200
28	3000	28	28	57	115	47	68	310
32	3500	32	32	64	127	52	73	430
38	5000	38	38	76	152	63	85	700
45	7000	45	45	90	180	75	96	1250
50	8000	50	50	102	200	78	108	1750
