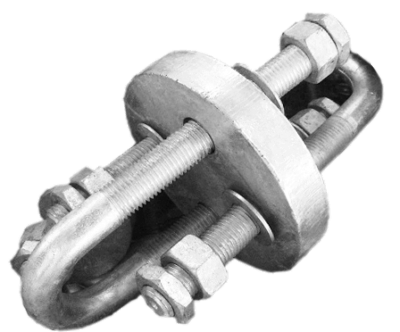

Double Adjustable Shackle
Brand: VENIT/OEM
The Double Adjustability of the Shackle allows for easy tightening and loosening, making it a convenient tool for any job site.
Product Details
U Adjuster Tensioner / Double Adjustable Shackle / Dog Bone Shackle

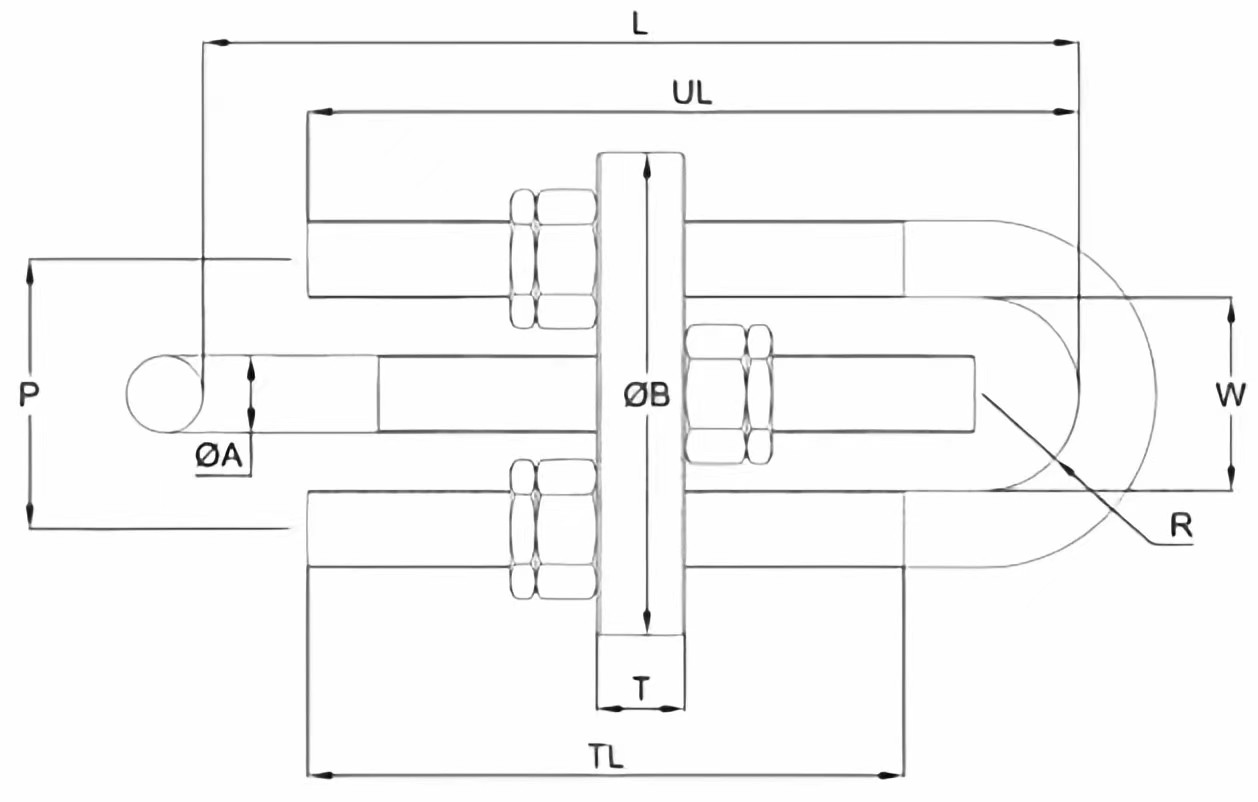

| U-Bolt ΦA | Length L | Chain Size | W | P | T | R | TL | UL | Weight(KG) |
| M16 | 200~240 | 16 | 40 | 56 | 20 | 20 | 120 | 160 | 2.7 |
| M18 | 220~280 | 18 | 45 | 63 | 20 | 22.5 | 135 | 180 | 3.5 |
| M20 | 235~305 | 20 | 50 | 70 | 25 | 25 | 150 | 200 | 5.3 |
| M22 | 265~345 | 22 | 56 | 78 | 25 | 28 | 165 | 220 | 6.6 |
| M24 | 280~370 | 22 | 60 | 84 | 30 | 30 | 180 | 240 | 8.8 |
| M27 | 310~420 | 25 | 68 | 95 | 30 | 34 | 200 | 270 | 11.8 |
| M30 | 345~465 | 30 | 76 | 106 | 35 | 38 | 225 | 300 | 16.7 |
| M33 | 385~525 | 32 | 82 | 115 | 35 | 41 | 250 | 330 | 20.7 |
| M36 | 420~560 | 35 | 90 | 126 | 40 | 45 | 270 | 360 | 27.1 |
| M42 | 480~65 | 40 | 106 | 148 | 50 | 53 | 315 | 420 | 44.8 |
| M48 | 545~745 | 45 | 120 | 168 | 55 | 60 | 360 | 480 | 63.9 |
| M52 | 595~805 | 50 | 130 | 182 | 55 | 65 | 390 | 520 | 79.6 |
| M56 | 640~880 | 55 | 140 | 196 | 60 | 70 | 420 | 560 | 98.1 |
| M60 | 685~945 | 60 | 150 | 210 | 65 | 75 | 450 | 600 | 121.9 |
| M64 | 730~1010 | 60 | 160 | 224 | 70 | 80 | 480 | 640 | 146.5 |
