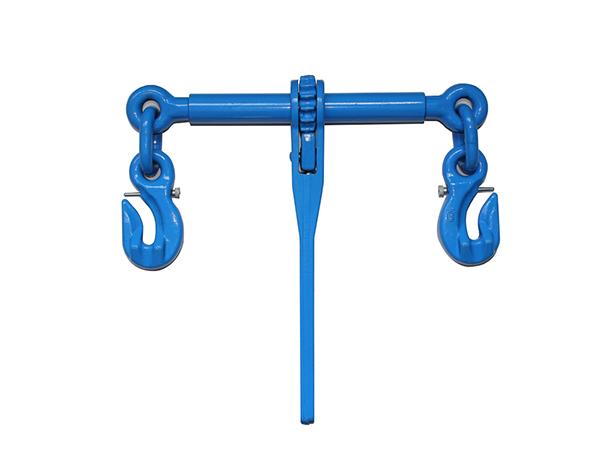

VNT1030 G100 Ratchet Chain Load Binder
● It meets the standard of EN12195-3.
● The handle is forged.
● It can be matched with G100 chains.
● It is a G100 eye grab hook with stop pin to ensure safety and prevent falling off.
● It can only be used for lashing but not lifting.
● Surface treatment: Blue Painted
● Color code: blue RAL5015.
Ultimate load is 2 times the Working Load Limit.

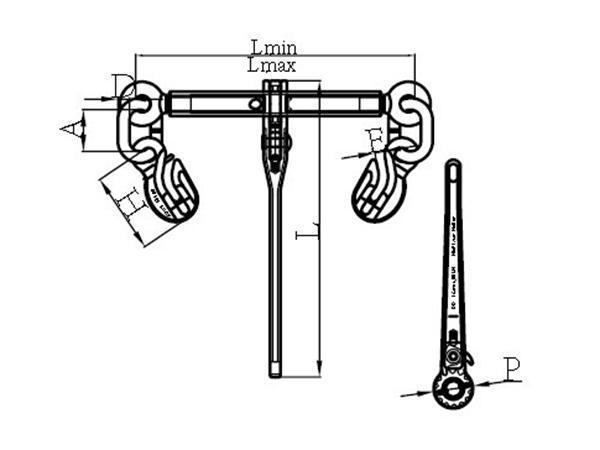

Item No. | Weight/kg | LC/KN | BF/KN | A±4 | D±1.5 | H±2 | E±2 | L±3 | P±1 | Lmin±4 | Lmax±4 |
| VNT1030-8 | 3.71 | 50 | 100 | 50 | 12 | 98 | 10.5 | 383 | 56 | 340 | 500 |
| VNT1030-10 | 5.85 | 80 | 160 | 50 | 14 | 121.5 | 13 | 390 | 65 | 365 | 525 |
| VNT1030-13 | 9.34 | 134 | 268 | 72 | 20 | 159.5 | 15.5 | 392.5 | 69 | 365 | 525 |
