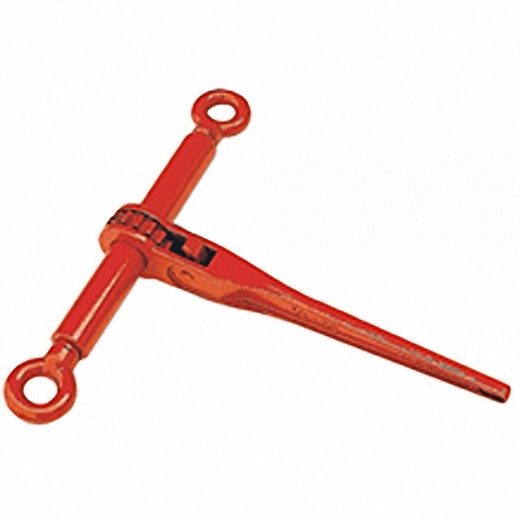

Ratchet Type Load Binder with Eyes
Brand: VENIT/OEM
The built-in ratchet mechanism allows for easy and controlled tensioning of the Load Binder. Simply pull the handle to tighten the Chain or Wire Rope, and the ratchet will lock in place to maintain the tension.
Product Details
Ratchet Type Load Binder with Eyes
| Min-Max | Working Load Limit | Proof Load (lbs) | Minimum Ultimate | Weight | Handle Length | Dimensions | |||||
| Chain Size | Load | /Each | (in.) | ||||||||
| (in.) | (lbs.) | (lbs.) | (lbs.) | (in.) | A | B | C | E | E1 | F | |
| 3/8 | 5400 | 10800 | 19000 | 7.8 | 13.42 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 0.79 |
| 1/2 | 9200 | 18400 | 33000 | 7.8 | 13.92 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 1.02 |
| 5/8 | 13000 | 26000 | 46000 | 8.5 | 13.92 | 13.92 | 1.3 | 2.6 | 14.17 | 22.17 | 1.02 |
