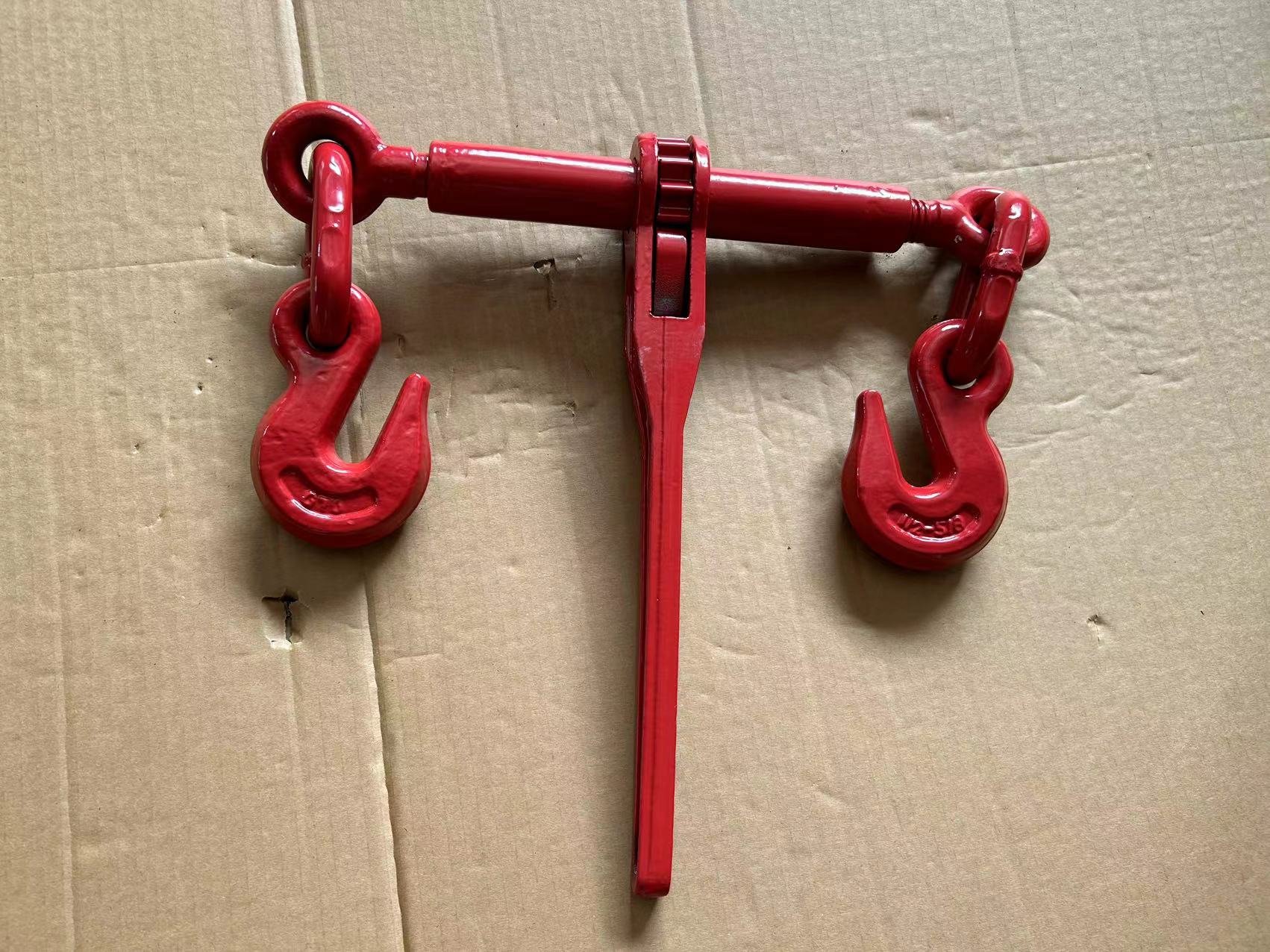

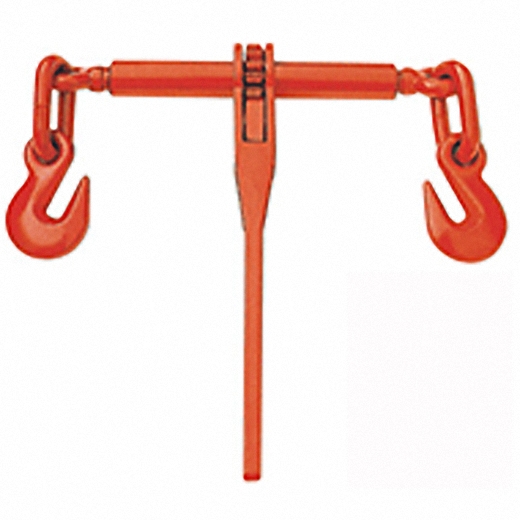

G70 Ratchet Type Load Binder
Brand: VENIT/OEM
The G70 Ratchet Type Load Binder is primarily made of forged alloy steel and features a ratchet mechanism that allows users to tighten and secure chains or ropes with a simple ratchet operation.
Product Details
G70 Ratchet Type Load Binder
| Item | VNT-RLBH08 | VNT-RLBH10 | VNT-RLBH13 | VNT-RLBH16 | |
| Min.-Max. Chain Size | Inch | 1/4-5/16 | 5/16-3/8 | 3/8-1/2 | 1/2-5/8 |
| Working Load Limit | lbs | 2600 | 5400 | 9200 | 13000 |
| Proof Load | lbs | 5200 | 10800 | 18400 | 26000 |
| Minimum Ultimate Load | lbs | 9200 | 19000 | 33000 | 46000 |
| Weight/Each | lbs | 3.52 | 10.50 | 12.90 | 14.38 |
| Handle Length | Inch | 7.16 | 13.42 | 13.92 | 13.92 |

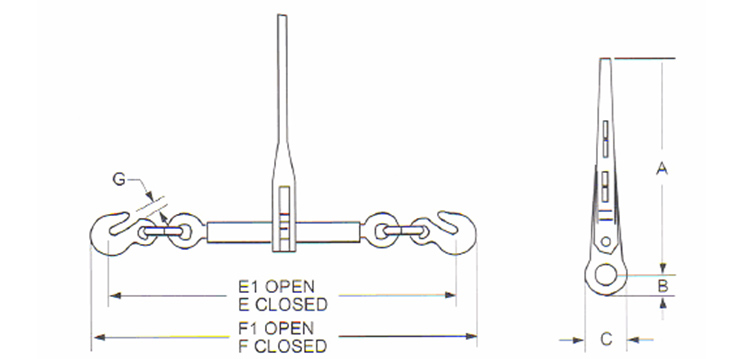

| Dimensions(Inch) | A | 7.16 | 13.92 | 13.92 | 13.92 |
| B | 0.89 | 1.30 | 1.30 | 1.30 | |
| C | 1.77 | 2.60 | 2.60 | 2.60 | |
| E | 16.22 | 22.64 | 24.13 | 26.45 | |
| E1 | 21.26 | 30.64 | 32.13 | 34.45 | |
| F | 17.79 | 25.24 | 27.04 | 30.07 | |
| F1 | 22.83 | 33.24 | 35.04 | 38.07 | |
| G | 0.35 | 0.51 | 0.59 | 0.74 | |
