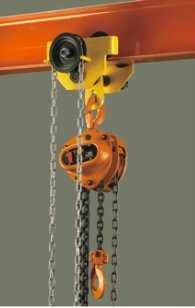

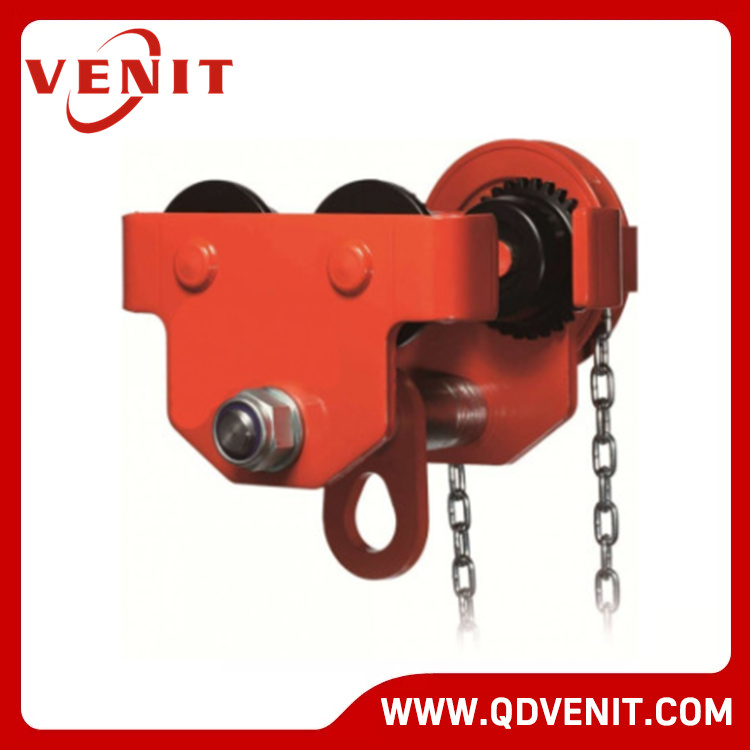

TG Type Beam Trolley
Features:
Suits a wide range of monorails and fabricated beams.
Strong rugged construction.
Super quick adjustment to any beam width within range.
Powder coated paint finish.
Precision ball bearing trolley wheels with machined tread for smooth operation.
Model | WLL | A | B | C | H | l-Beam recommended A | l-Beam recommended B | Weight |
(TON) | (MM) | (MM) | (KG) | |||||
TG1 | 1 | 280 | 236 | 211 | 115 | 80-146 | 64-140 | 14 |
TG2 | 2 | 318 | 273 | 236 | 130 | 80-168 | 76-165 | 16 |
TG3 | 3 | 340 | 320 | 295 | 164 | 88-168 | 76-203 | 24 |
TG5 | 5 | 365 | 366 | 334 | 177 | 100-170 | 88-203 | 36 |
TG10 | 10 | 410 | 389 | 460 | 237 | 122-203 | 125-203 | 90 |
