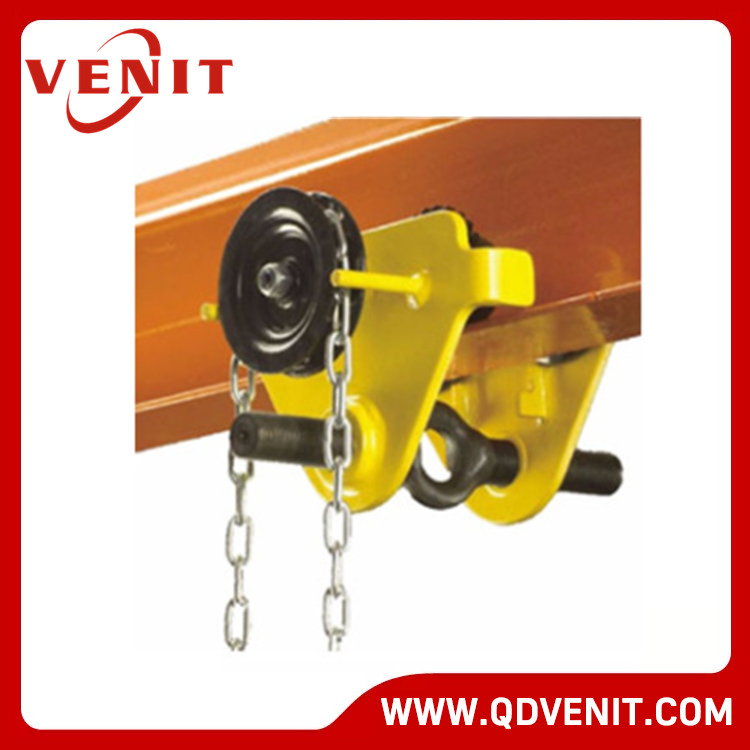

ATG Type Geared Trolley
Features:
The easiest trolley installation ever–simply rotate the threaded hanger shaft to adjust for beam width
Machined cast iron wheels with universal tread design to fit flat or tapered beam flanges
Low headroom design with precision sealed “lubed for life” bearings for smooth operation
Durable, all steel construction with standard safety lugs

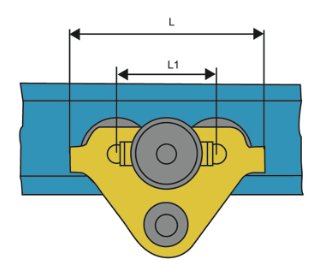

| Model | WLL | L | L1 | l-Beam recommended | Weight |
| (TON) | (MM) | (KG) | |||
| ATG1 | 1 | 250 | 120 | 64-220 | 13 |
| ATG2 | 2 | 298 | 138 | 88-220 | 20.5 |
| ATG3 | 3 | 334 | 156 | 102-220 | 30 |
| ATG5 | 5 | 384 | 177 | 114-220 | 43 |
