High-Quality Discounted Stainless Steel Woven Filter Sieve Mesh Factory in China.

banner
Product Details

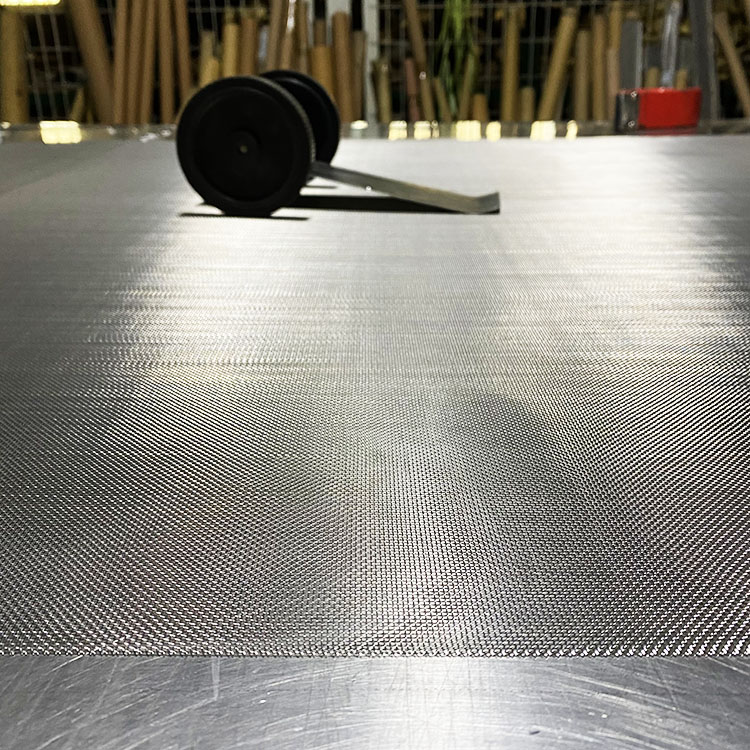

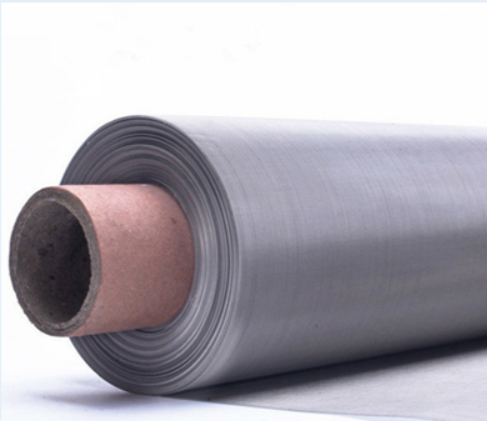

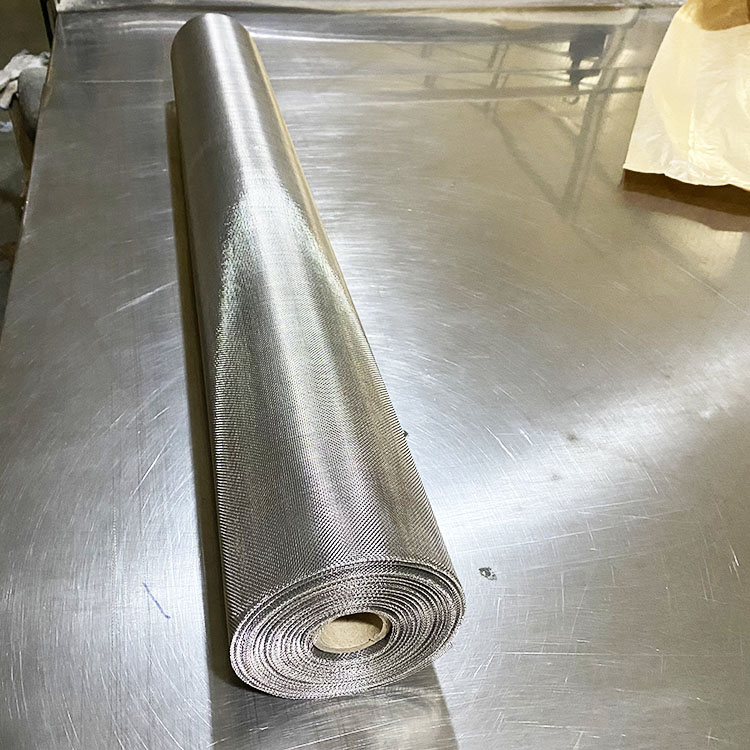

Stainless Steel Woven Filter Sieve Mesh

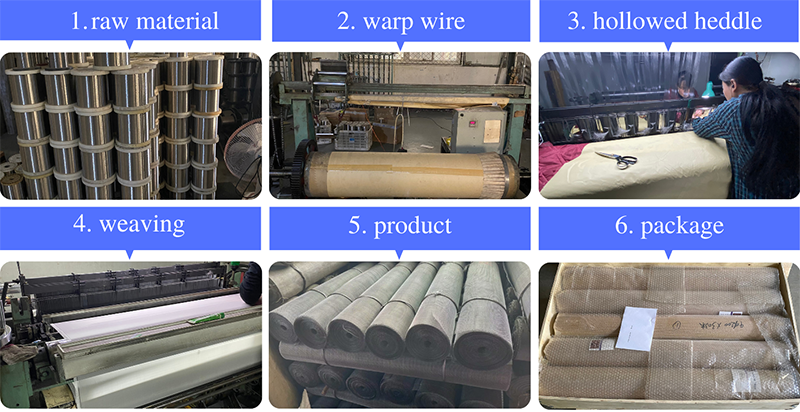

Manufacture Process:

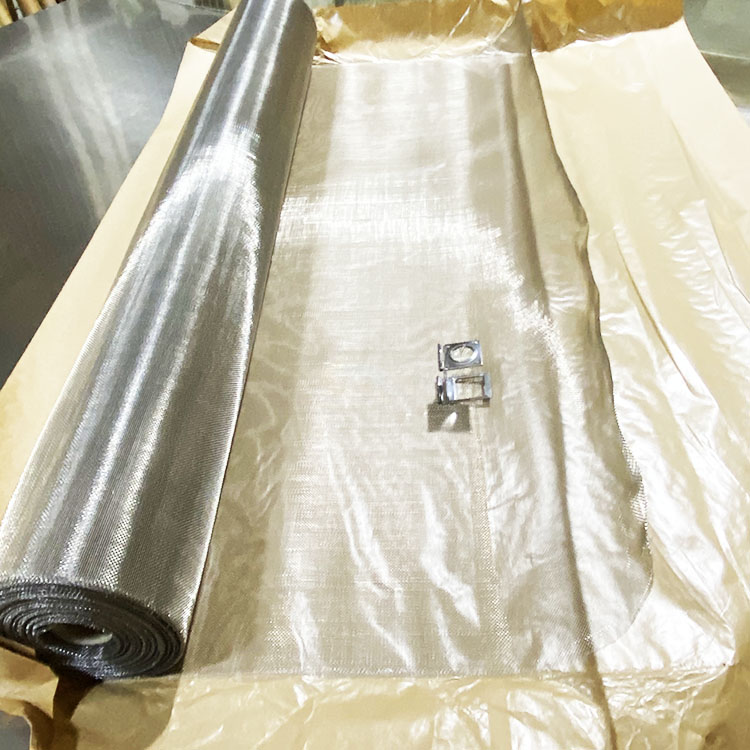

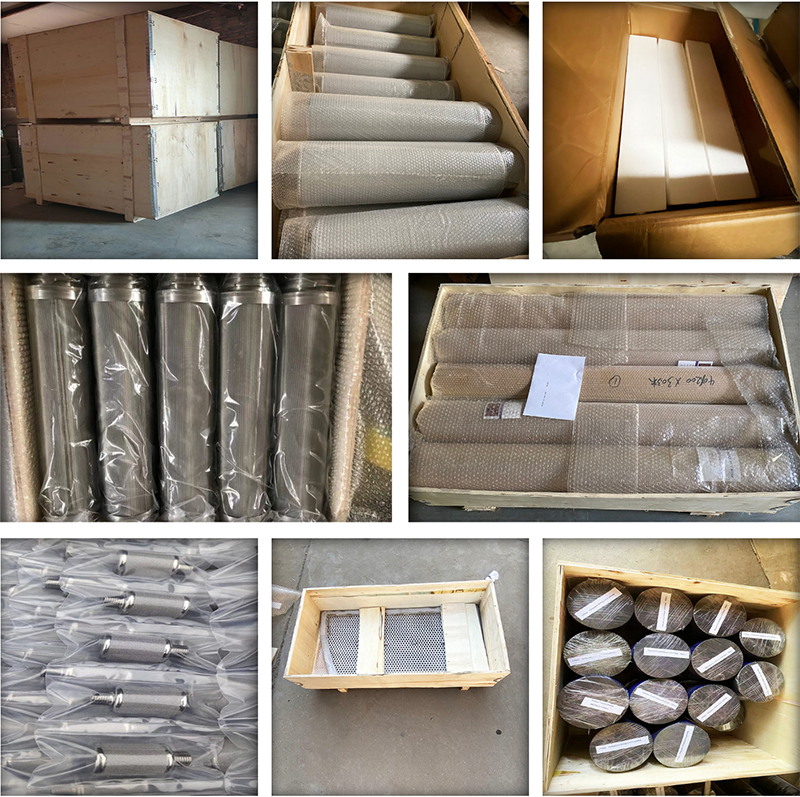

Products Package:


Stainless Steel Woven Filter Mesh main material is SS302, 304, 304L, 316, 316L, 430 etc. Main type has Weaving mesh, Welded mesh, Punching mesh. Here we introduce the weaving mesh as follow, because it's often used.


Type:Stainless Steel Woven Filter Mesh

 Weaving type: plain weave, twill weave and dutch weave

Mesh size: square mesh 1-635mesh; dutch mesh 12/64mesh-400/2800mesh

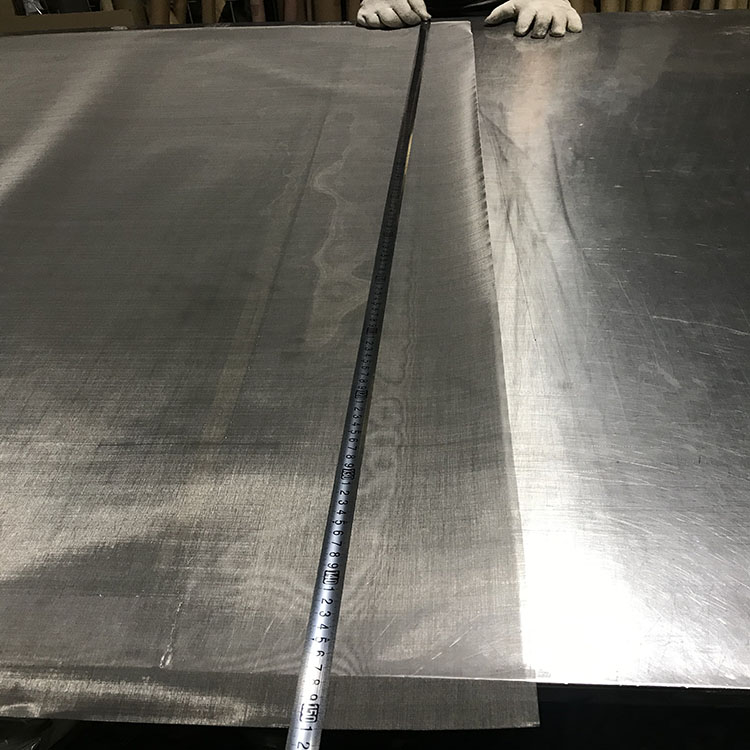

Roll width: 3ft-1m-4ft-5ft-2m-3m-5m-6m

Roll length: 30m

Feature: acid-resisting, alkali-resisting, heating-resisting, wear-resisting

Usage: sieving and filtration of mine,petroleum,chemical industry,food industry,pharmaceutical industry and machinery manufacturing etc

Common size is the column as below:



Mesh

Wire Diameter (MM)

Impurity Particle Size(UM)

Opening Area

10

0.55

2000

36

12

0.50

1600

39

14

0.45

1350

37

16

0.40

1200

35

18

0.35

1000

39

20

0.30

970

33

30

0.25

600

47

40

0.21

425

51

50

0.19

318

50

60

0.15

273

49

80

0.12

198

53

100

0.10

150

54

120

0.08

132

62

150

0.065

100

31

180

0.053

88

32

200

0.023

74

33

250

0.04

60

31

300

0.035

49

30

Any size is available according to customer's requirement
