Product Details

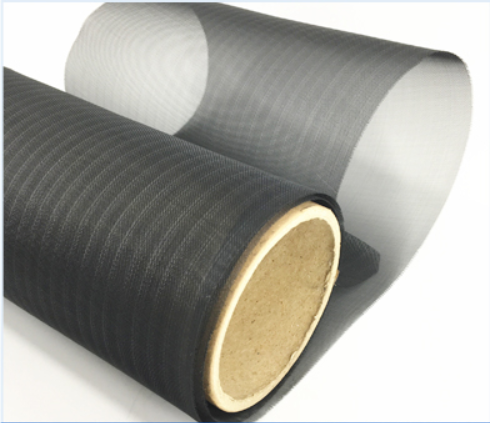

Mesh Plain Weave Titanium Wire Mesh Fabric Screen
| Mesh | Wire Dia.( Inch) | Weave Type | Opening Size(Inch) | Opening Area |
| Mesh 9 | 0.032 | Plain | 0.0791 | 50.7 |
| Mesh 16 | 0.006 | Plain | 0.0565 | 81.7 |
| Mesh 18 | 0.011 | Plain | 0.0446 | 64.3 |
| Mesh 20 | 0.003 | Plain | 0.047 | 88.4 |
| Mesh 20 | 0.0118 | Plain | 0.0382 | 58.4 |
| Mesh 20 | 0.015 | Plain | 0.035 | 49 |
| Mesh 26 | 0.01 | Plain | 0.0285 | 54.8 |
| Mesh 30 | 0.004 | Plain | 0.0293 | 77.4 |
| Mesh 30 | 0.01 | Plain | 0.0233 | 49 |
| Mesh 35 | 0.008 | Plain | 0.0206 | 51.8 |
| Mesh 35 | 0.009 | Plain | 0.0196 | 46.9 |
| Mesh 40 | 0.005 | Plain | 0.02 | 64 |
| Mesh 40 | 0.007 | Plain | 0.018 | 51.8 |
| Mesh 45 | 0.009 | Twill | 0.0132 | 35.4 |
| Mesh 50 | 0.004 | Plain | 0.016 | 64 |
| Mesh 50 | 0.004 | Twill | 0.016 | 64 |
| Mesh 60 | 0.007 | Twill | 0.0097 | 33.6 |
| Mesh 60 | 0.009 | Twill | 0.0077 | 21.2 |
| Mesh 80 | 0.005 | Plain | 0.0075 | 36 |
| Mesh 100 | 0.002 | Plain | 0.008 | 64 |
| Mesh 100 | 0.003 | Plain | 0.007 | 49 |
| Mesh 120 | 0.004 | Twill | 0.0043 | 27 |
| Mesh 150 | 0.0027 | Twill | 0.004 | 35.4 |
